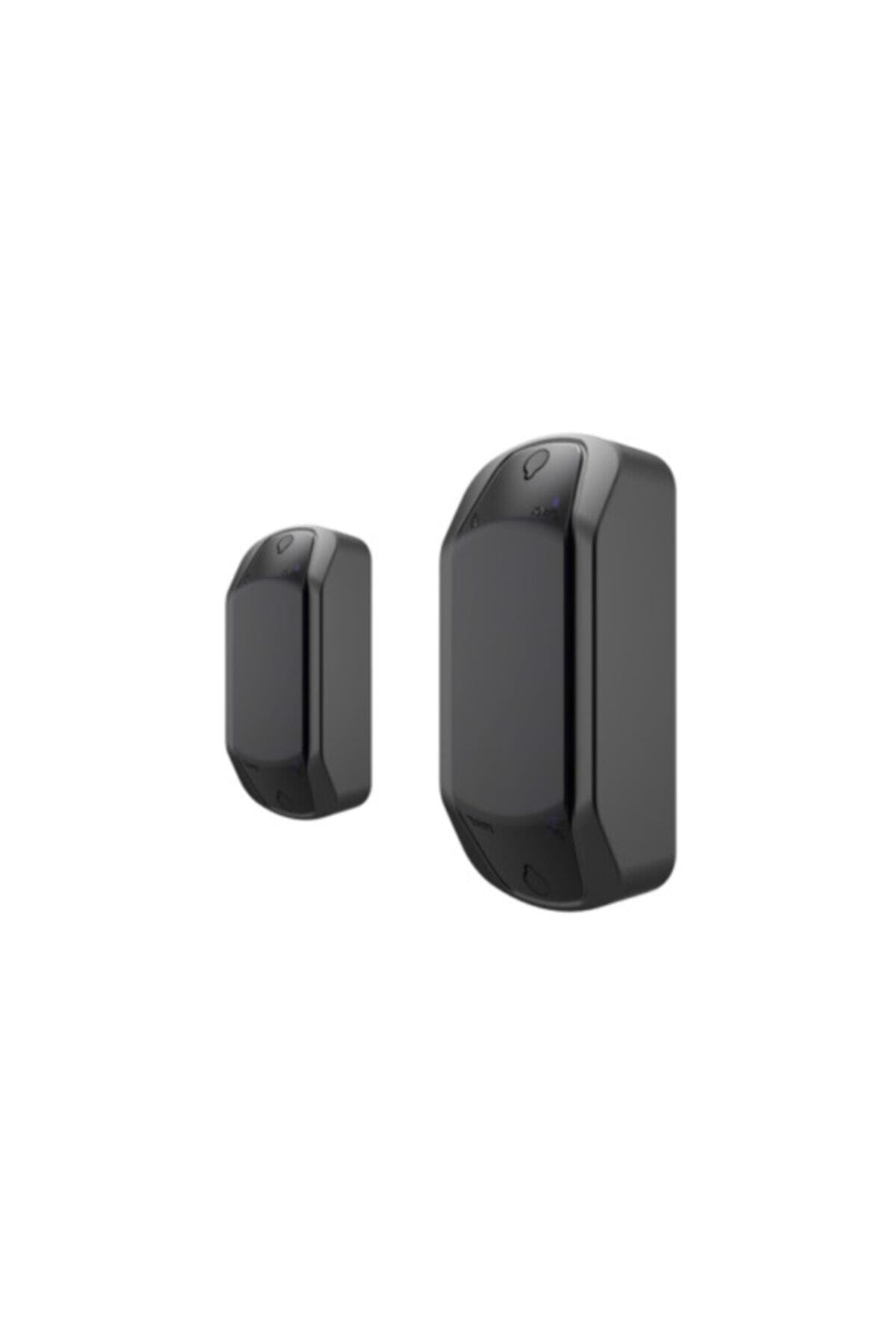

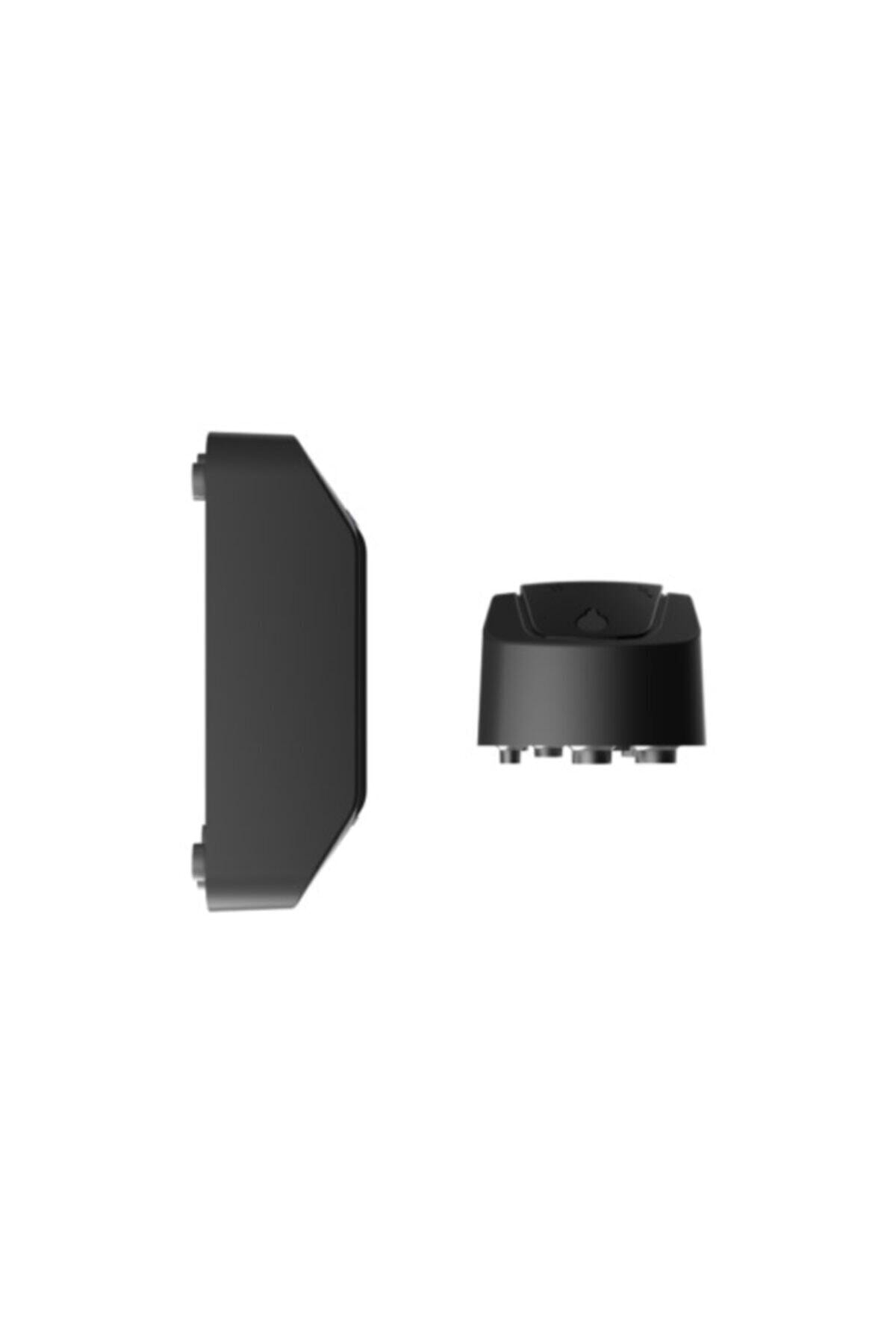

Contal Wired Safety Photocell - EMFB K012-01Safety photocell is a unit that is produced for safety and control purposes and works as a receiver and transmitter with infrared signals. Receiver and transmitter units are mounted so that they can see each other. The receiver unit exits when an obstacle enters and exits. With its specially designed structure and equipment, it will be the right solution where sun rays cause problems. The working voltage is 15 – 24V AC/DC, the maximum working distance is 16 meters. With the trimpot on the transmitter, the signal strength can be increased or decreased. NO / NC relay outputs available Uses

Shutter Systems

Barrier systems

Sliding garden gate systems

Mushroom barrier systems

Industrial door and fast pvc door systems

The terminal group on the transmitter module is reserved for the 12/24 AC-DC voltage supply required for the card. If you are going to use DC source when making this terminal connection, pay attention to the + and – aspects of the connection. With the trimpot (POT1) on the transmitter module, you can increase or decrease the power of the signal to be sent by the transmitters. You can increase the signal strength with the adjustment you will make in the (+) direction and decrease the power with the adjustment you will make in the opposite (-) direction. You can extend the working distance by increasing the signal strength. Operating Voltage Selection The JMP1 jumper on the transmitter module is used to determine the supply voltage of the board.
