Package Contents

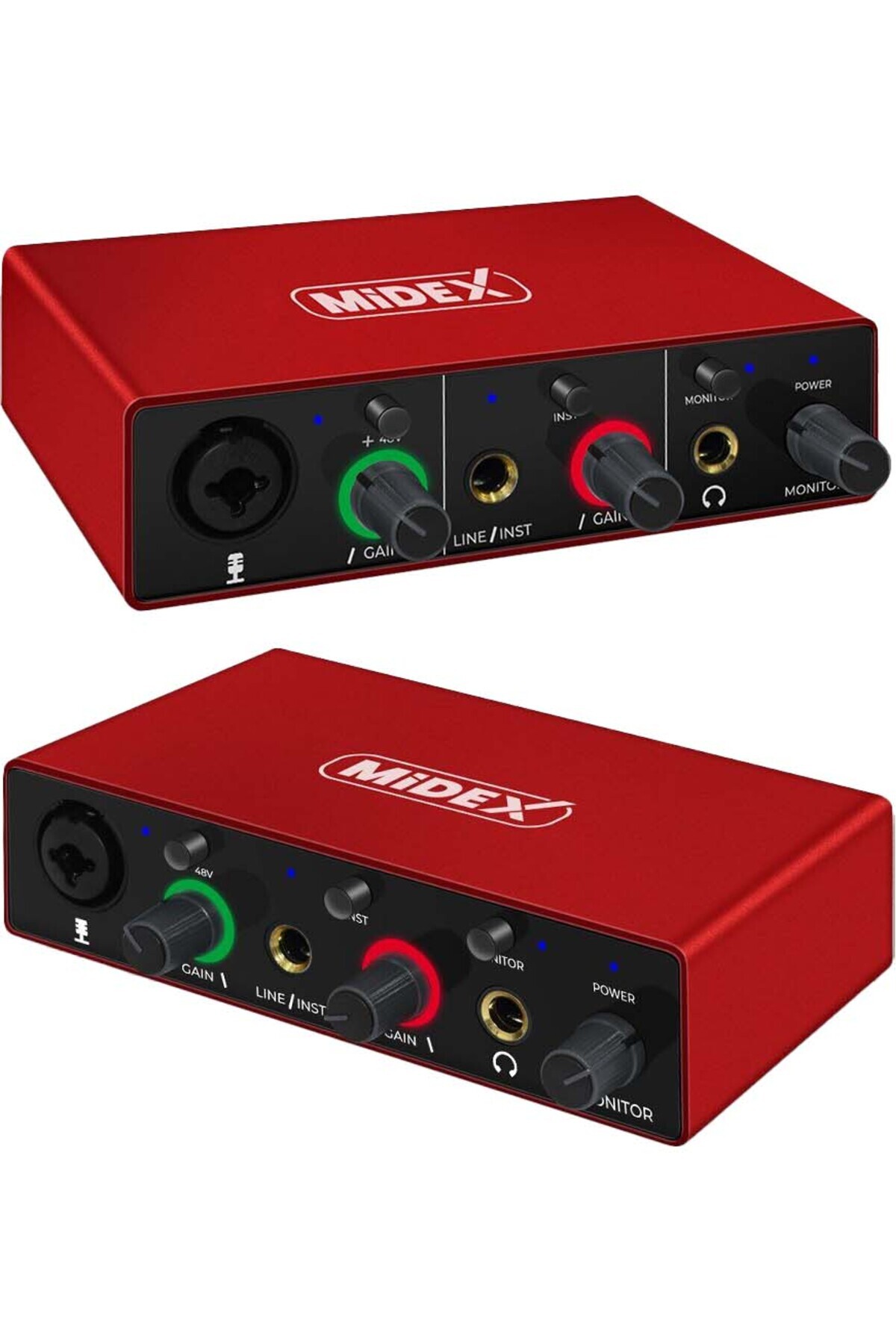

1 x MidexGLX-500 pro Sound Card

1 Piece 3 Meters XLR to XLR Cable

1 USB Mezzanine Cable

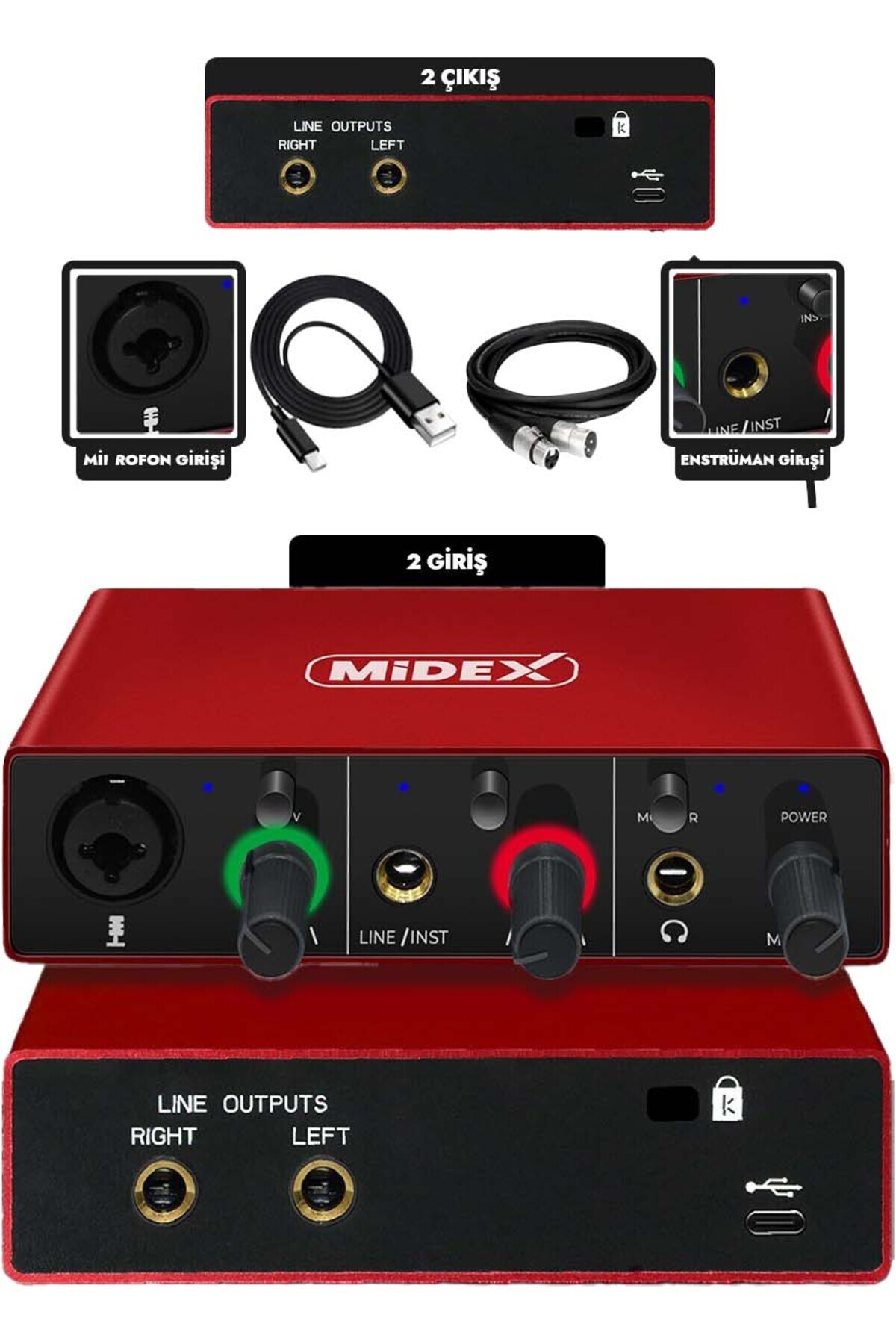

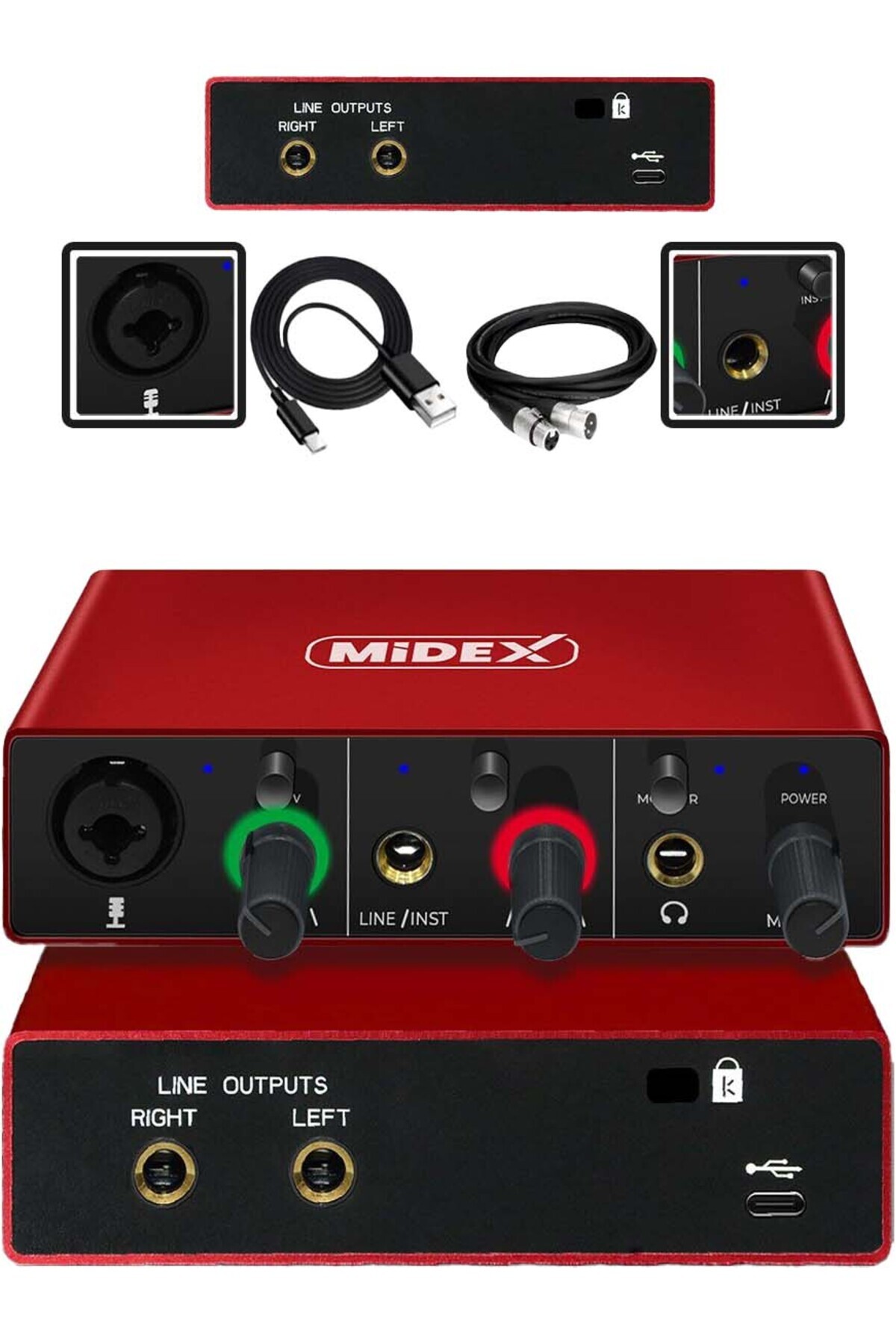

INPUTS and OUTPUTS:

1 pcs. MICROPHONE INPUT (XLR/6.3 mm JACK)

1 pc. INSTRUMENT INLET (6.3 mm JACK)

1 HEADPHONE OUTLET (6.3 mm JACK)

1 pcs. REFERENCE MONITOR OUTPUT (2x6.3 mm JACK)

1 pcs. 1xUSB 2.0 Type C Connection

MICROPHONE INPUT FEATURES:

Dynamic Range: 95 dB

Frequency Response: 20 HZ to 20 kHz ±1 dB

Noise Cancellation: -110 dBu

Input Impedance: 3 kohms

INSTRUMENT INPUT FEATURES:

Dynamic Range: 95 dB

Frequency Response: 20 HZ to 20 kHz ±1 dB

Input Impedance: 1 Mohms

HEADPHONE OUTPUT FEATURES:

Dynamic Range: 90 dB

Frequency Response: 20 HZ to 20 kHz ±1 dB

Impedance: 30~300 ohms

LINE IN CHARACTERISTICS:

Dynamic Range: 95 dB

Frequency Response: 20 HZ to 20 kHz ±1 dB

Input Impedance: 20 kohms

LINE-OUT CHARACTERISTICS:

Dynamic Range: 95 dB

Frequency Response: 20 HZ to 20 kHz ±1 dB

Impedance: 221 ohms

SIZE and WEIGHT:

140 mm x 87 mm x 36 mm

350 grams

2 YEARS WARRANTY
