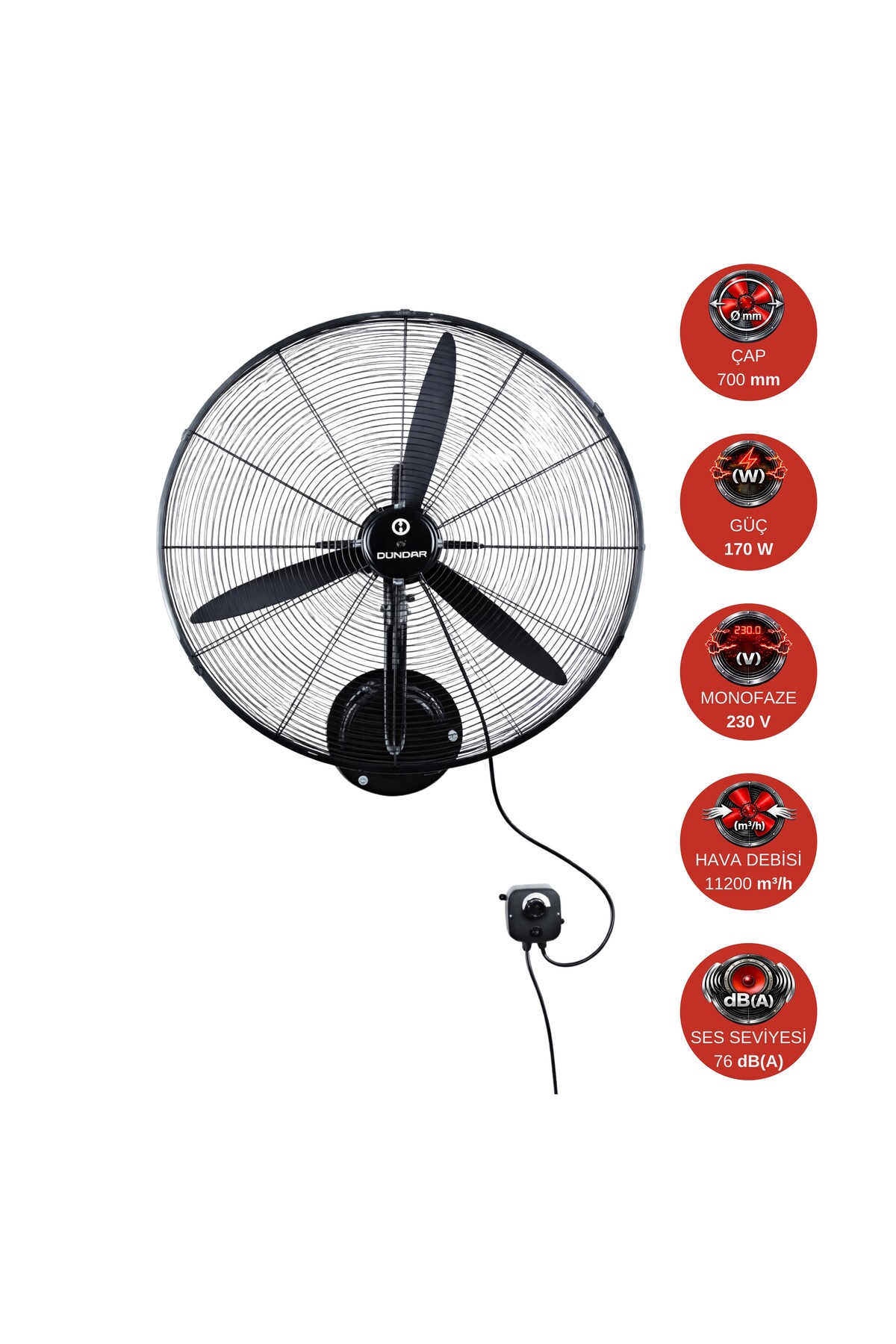

What is Dündar Wall Type Ventilator?Industrial fans are wall fans used to ventilate and cool large volumes of space.

It is automatic left and right spreading

It can also run stationary if desired

You can adjust the engine speed with 3 different speed settings

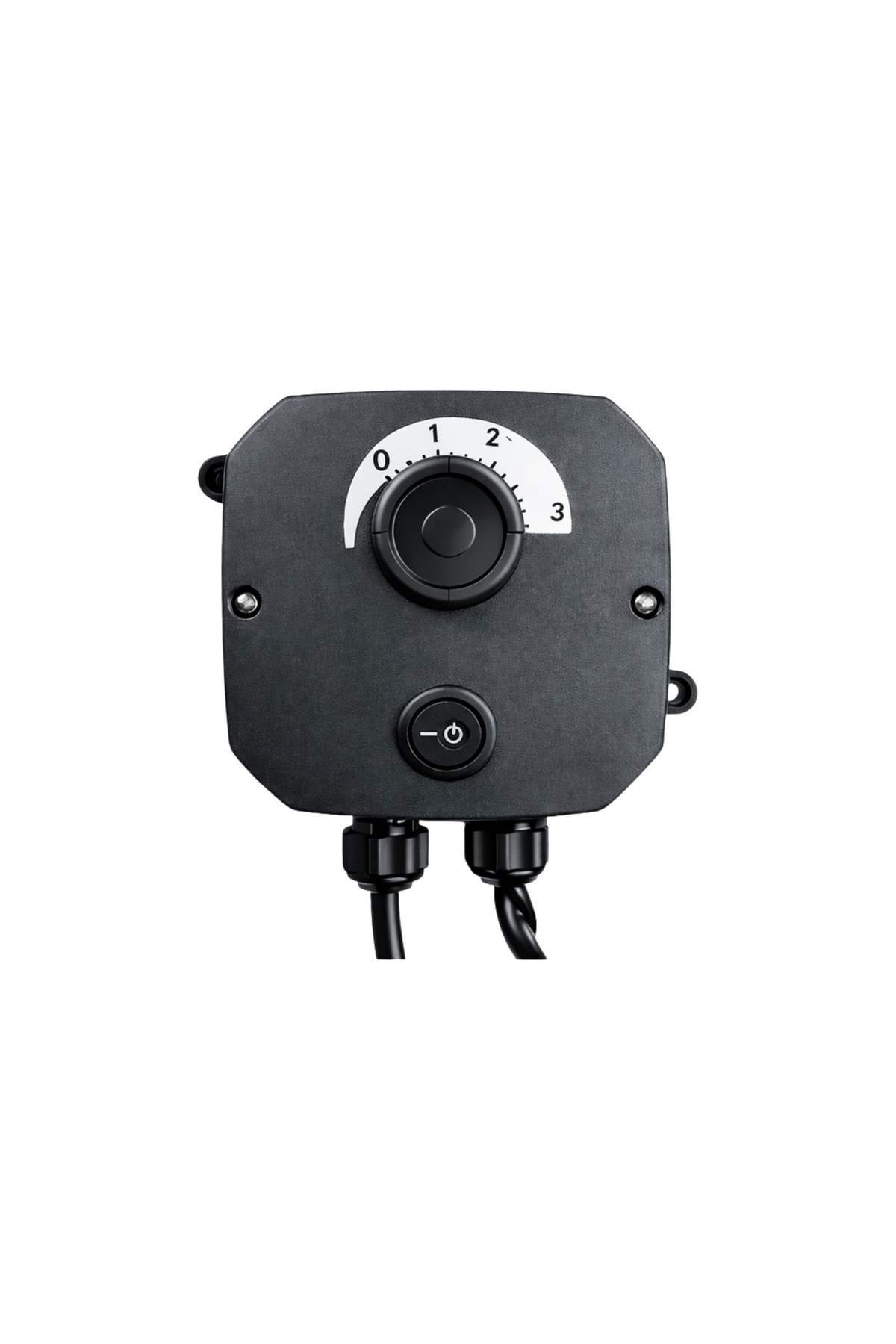

One of the most important features is that the control control can be mounted separately at the desired location

Industrial Type Fans give a feeling of coolness by increasing the air velocity in the environment

It makes the ambient temperature homogeneous, makes the thermal comfort of the living environment ideal, provides natural cooling

It does not require you to close your door and window in summer and thus constantly refreshes the air of the environment in which it is used with clean outdoor air

Since it does not cause sudden temperature changes, it does not cause health problems. It increases the benefit of the heating and cooling devices you use in the environment.

Ensures economical operation of the heating and cooling devices you use

Does not require any maintenance during its lifetime

Consumes less energy than heating and cooling devices

Environmentally friendly devices

Installation and operating costs are low

(air conditioner etc.

according to the devices) Fan Body and Propeller of Dündar Wall Mounted Fans Domestic Production, The feature of making natural circulation by automatically turning to the right and left, High quality cold drawn wire mesh, High resistance to corrosion with environmentally friendly electrostatic epoxy powder paint, ISO 1940 dynamic tested aluminum propeller blades in accordance with the standards EN 60335

2

Front and rear protection cage in accordance with 80 standards, Height adjustable body and balanced foot design, Low Noise Motor of Dündar Wall Mounted Ventilators High-tech CNC machines untouched quality production, High heat transmission capacity of aluminum federated motor body, Long bearing operating life with a rotor balanced according to ISO 1940 standards, High operating range for coils with Insulation class Class F

40° to +70°,

230V/50Hz

Single Phase Fan motor with 3-stage adjustment

Certified Components Compliant with Standards, Protection Class IP 54, Motor with external cooling propeller for harsh conditions

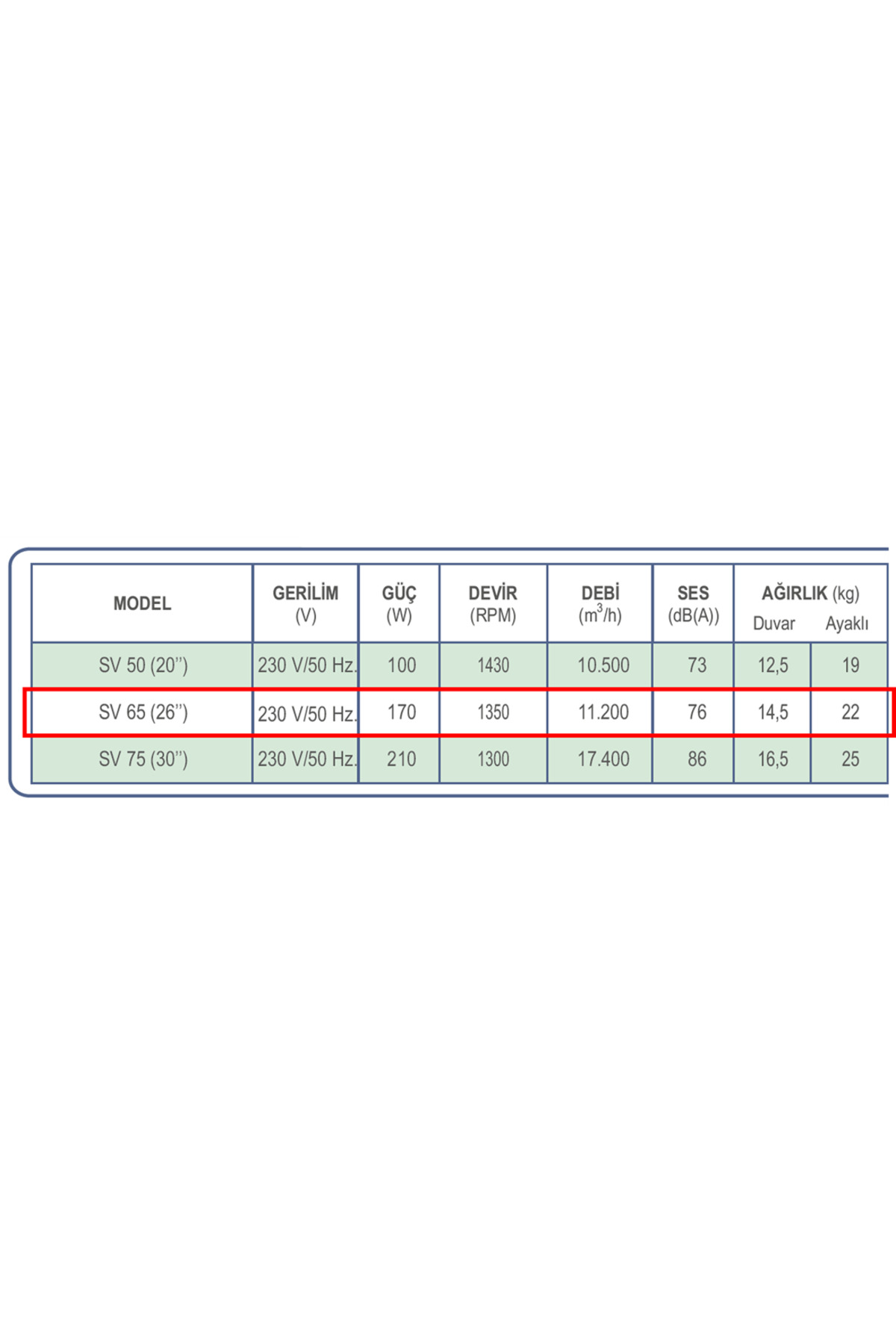

Usage Areas of Wall Mounted Ventilators General and industrial buildings for cooling in places where air temperature is high Warehouse and warehouse areas Garage and public buildings Agricultural buildings Commercial greenhouses Large workshops Paint shops Factories MODEL VOLT CYCLE VOLTAGE MAX FLOW RATE SOUND DECIBEL WEIGHT SV 60

D WALL 230 V

50 HZ 1350 170 W 11200 M³/H 76 pcs 14

5 KG
