Password protected door lock.........................................

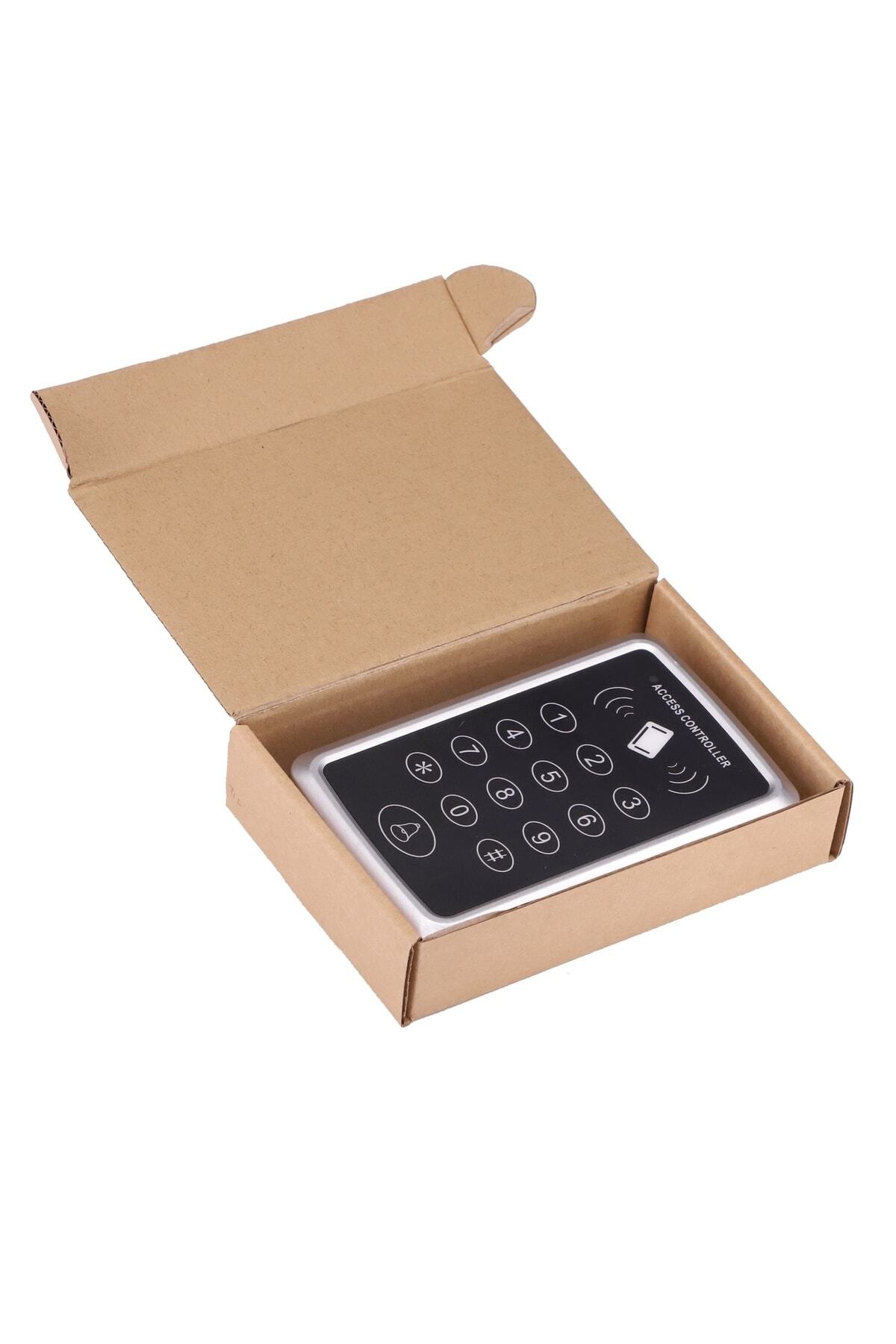

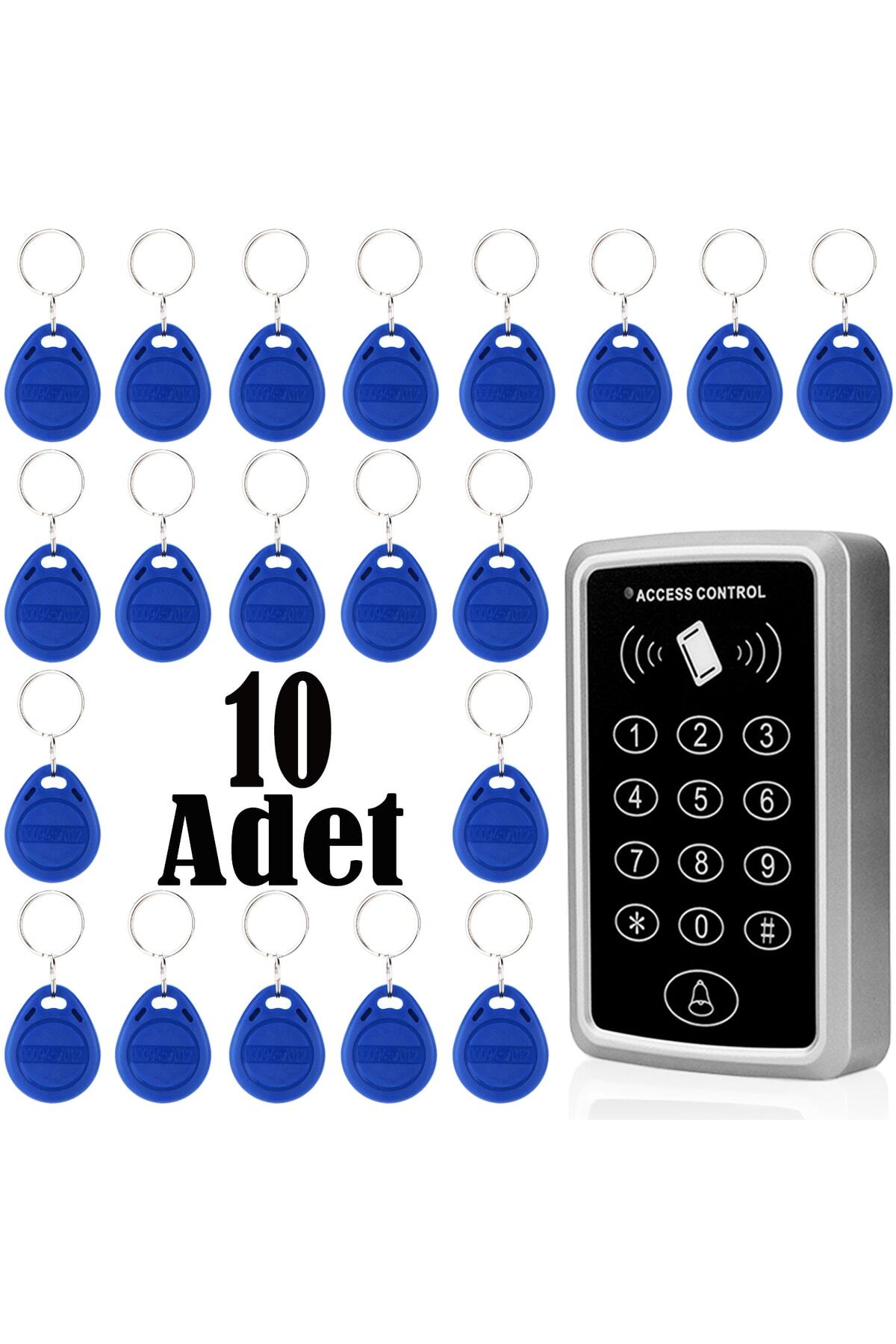

Card Access Control Indicator System 1 Rfid Encrypted Door Lock 10 Magnetic Key Gifts

Sensitive and quick response

Uncopyable Key

Only Defined to the System with Password

High quality and high safety

Supports 1000 standard users

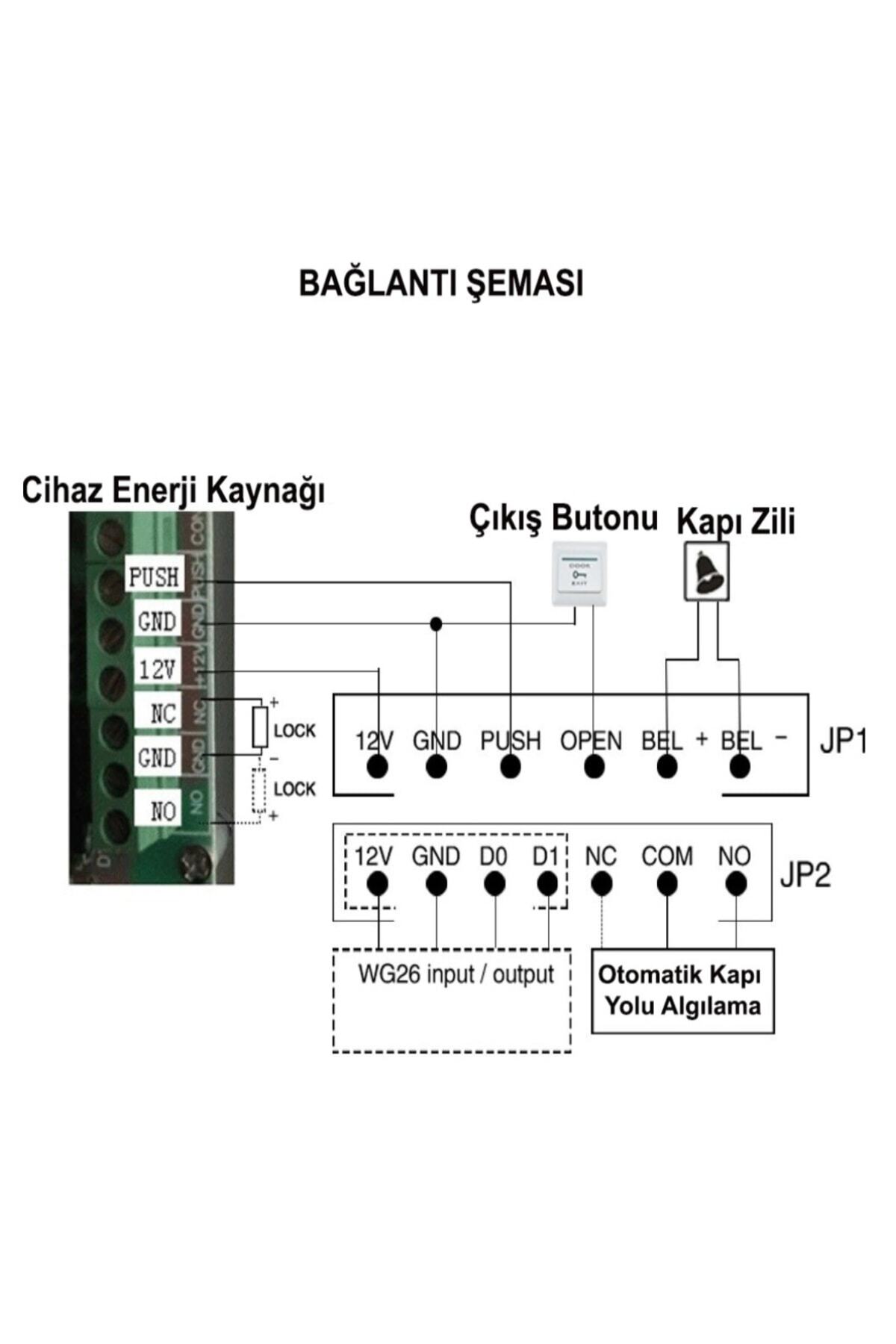

Wiegand 26 interface Illuminated and Audible Confirmation and Warning

Device Works in 3 Modes as Password,Card,Password+Card

Operating in NO/NC Mode (On/Off) Buzzer Button You can Record or Delete by Entering or Reading the card number

All Manager actions are done with password

Master card or identification card is not needed

Professional design for Home & Office

Door Lock Specifications: Operating voltage: DC12V +

10% Operating current: 1

2A Lock relay: DC 12V/3A Adjustable Relay Time 1

Memory between 250 Seconds: 1000 standard users (ID cards) Card reading distance: ID model 5

15cm Proximity card: ID model EM Frequency: ID model 125KHz Operating temperature:

15 ~ 60c Door open options (admin user selectable): Card (Key Tag) and Password / Card (Key Tag) Only / Password Only
