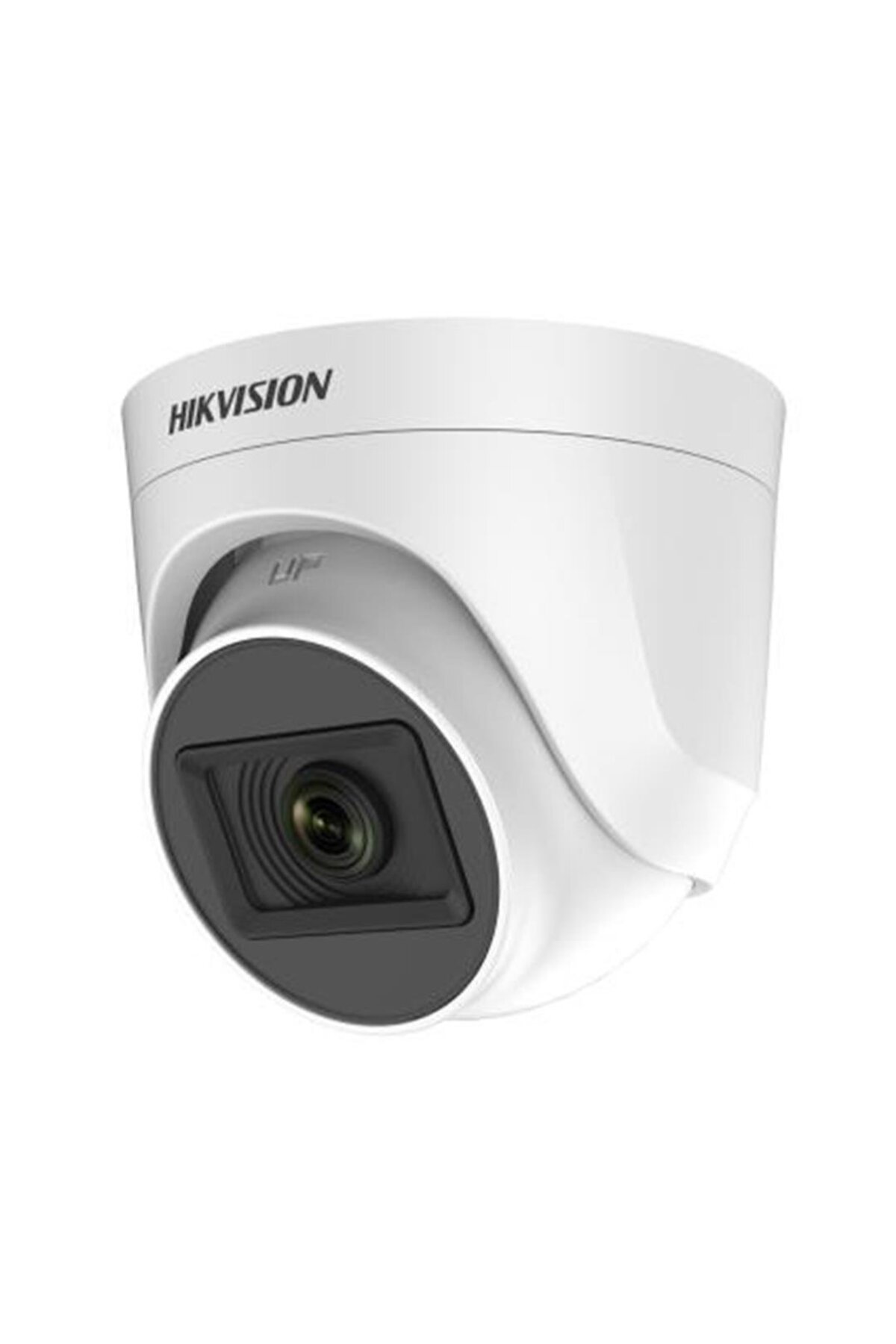

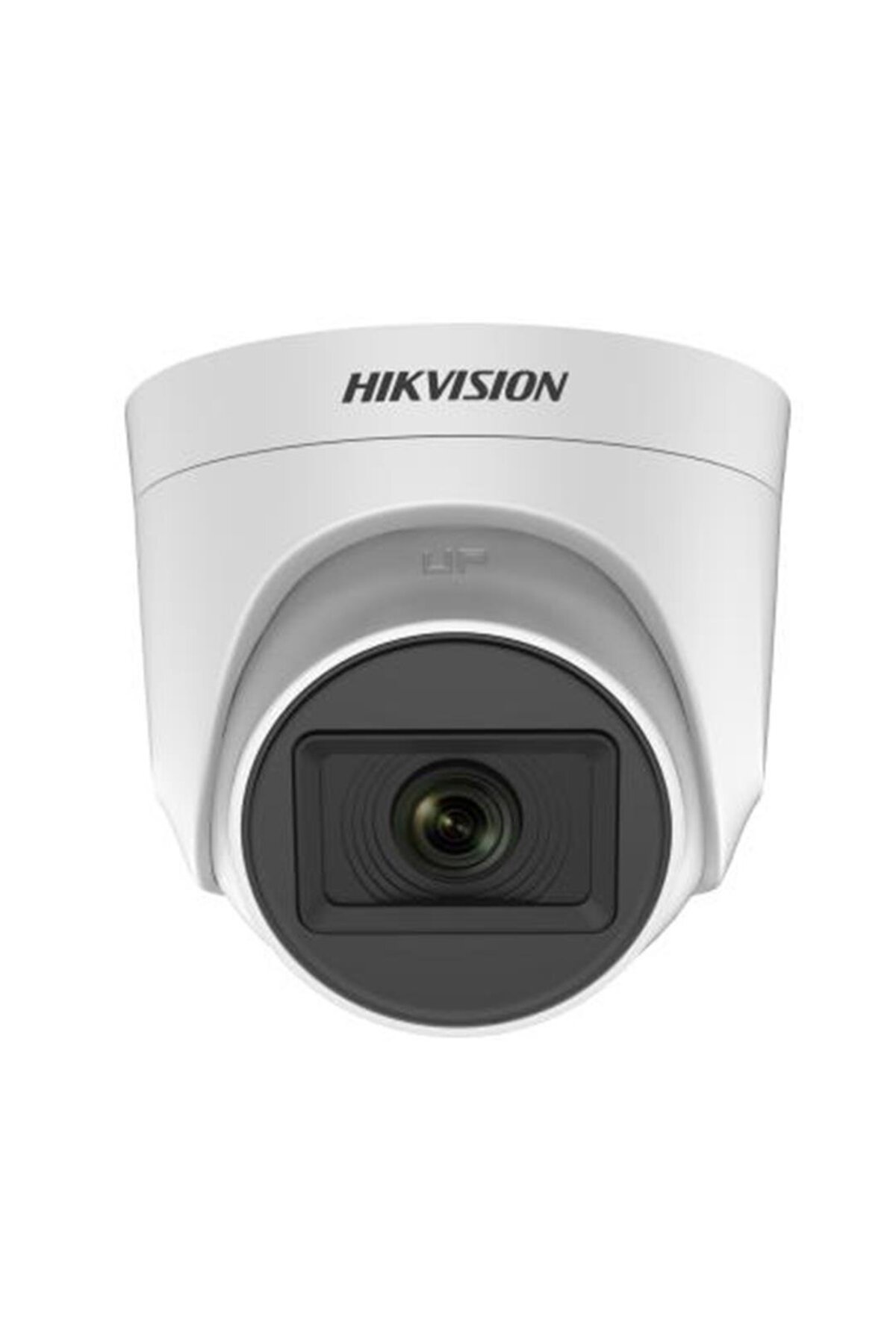

Camera ModelDS-2CE76D0T-EXIPF Product Name2MP Indoor EXIR Fixed Turret Camera Image Sensor2 MP CMOS Signal SystemPAL/NTSC Resolution1920 (H) × 1080 (V) Frame Rate TVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVI: 1080p@25fps/30fps CVBS: PAL/NTSC Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter TimePAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s Lens2.8 mm, 3.6 mm Fixed Lens Field Of View 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5° 3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0° Lens MountM12 Day & NightIR Cut Filter WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° Image Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White BalanceAuto AE (Auto Exposure) ModeBLC

GLOBAL

DWDR Noise Reduction2D DNR LanguageEnglish FunctionSharpness

Smart IR

Mirror

Brightness Interface Video OutputSwitchable TVI/AHD/CVI/CVBS General Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) Power Supply12 VDC ± 25% ConsumptionMax. 3.3 W MaterialPlastic IR RangeUp to 20 m CommunicationHIKVISION-C Dimension? 84.6 mm × 78.9 mm (? 3.33" × 3.11") Approx. 195g (0.43 lb.)
