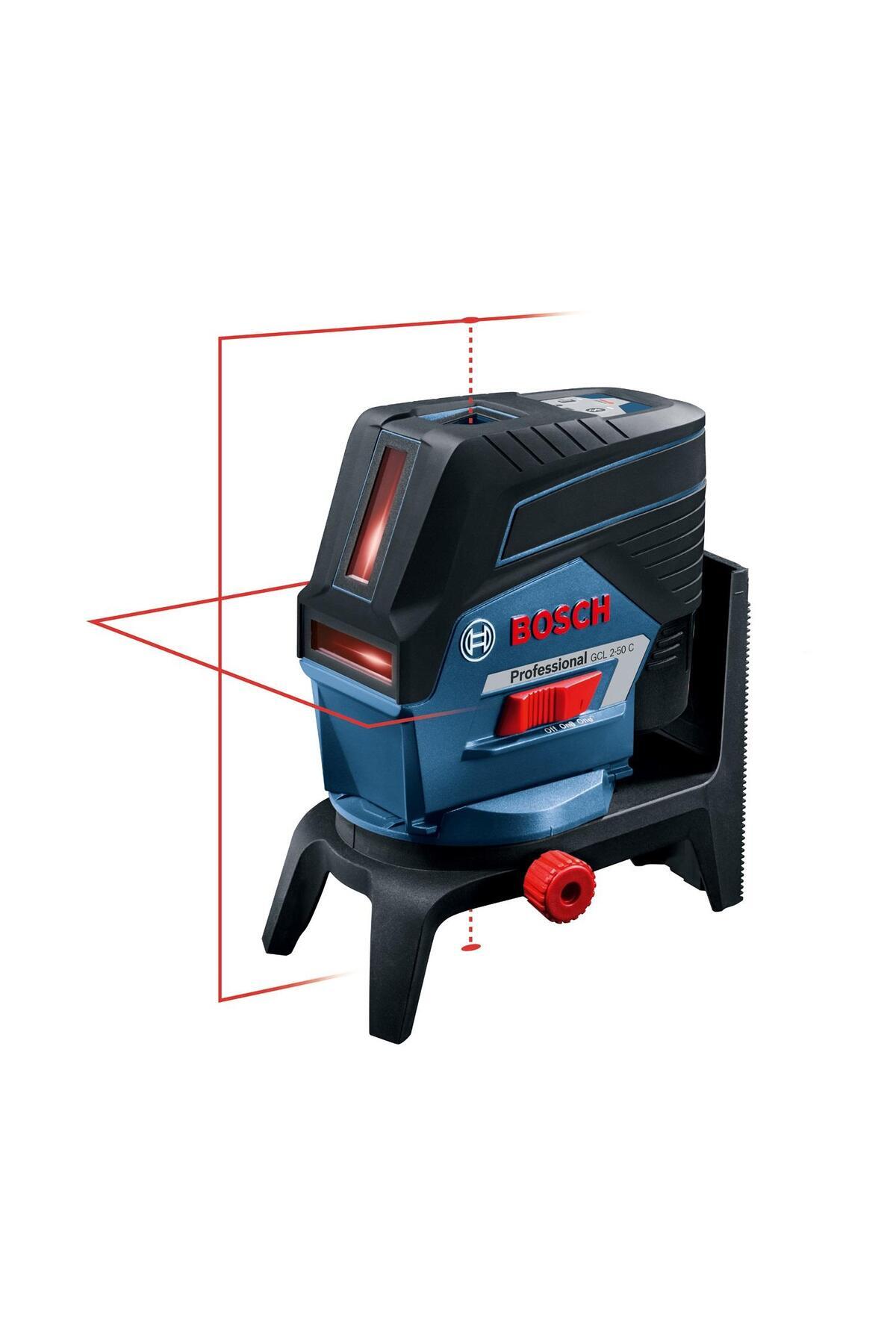

User Advantages Two centered laser points with horizontal and vertical laser lines and optimum visibility High visibility of laser lines (without receiver) with 20 m work area High visibility of laser lines (without receiver) with LR 6 or LR 7 Professional receiver (optional) Pendulum locking allows safe transportation Bluetooth® connection with smartphone for remote control and handpiece adjustment Dual Power Supply: Can be operated with 12-V Lithium Ion battery or standard alkaline batteries Precise positioning of laser lines around laser points – Motorized positioning with RM 3 Professional (optional) or manual positioning with RM 2 Professional using mobile application or remote control Technical Specifications Laser diode 635-650 nm Operating temperature -10 – 50 °C Storage temperature -20 – 70 °C Laser class 2 Working range 20 m Working range with receiver 50 m Reflection 2 lines / 2 points Sensitivity ± 0.3 mm at 1 m.

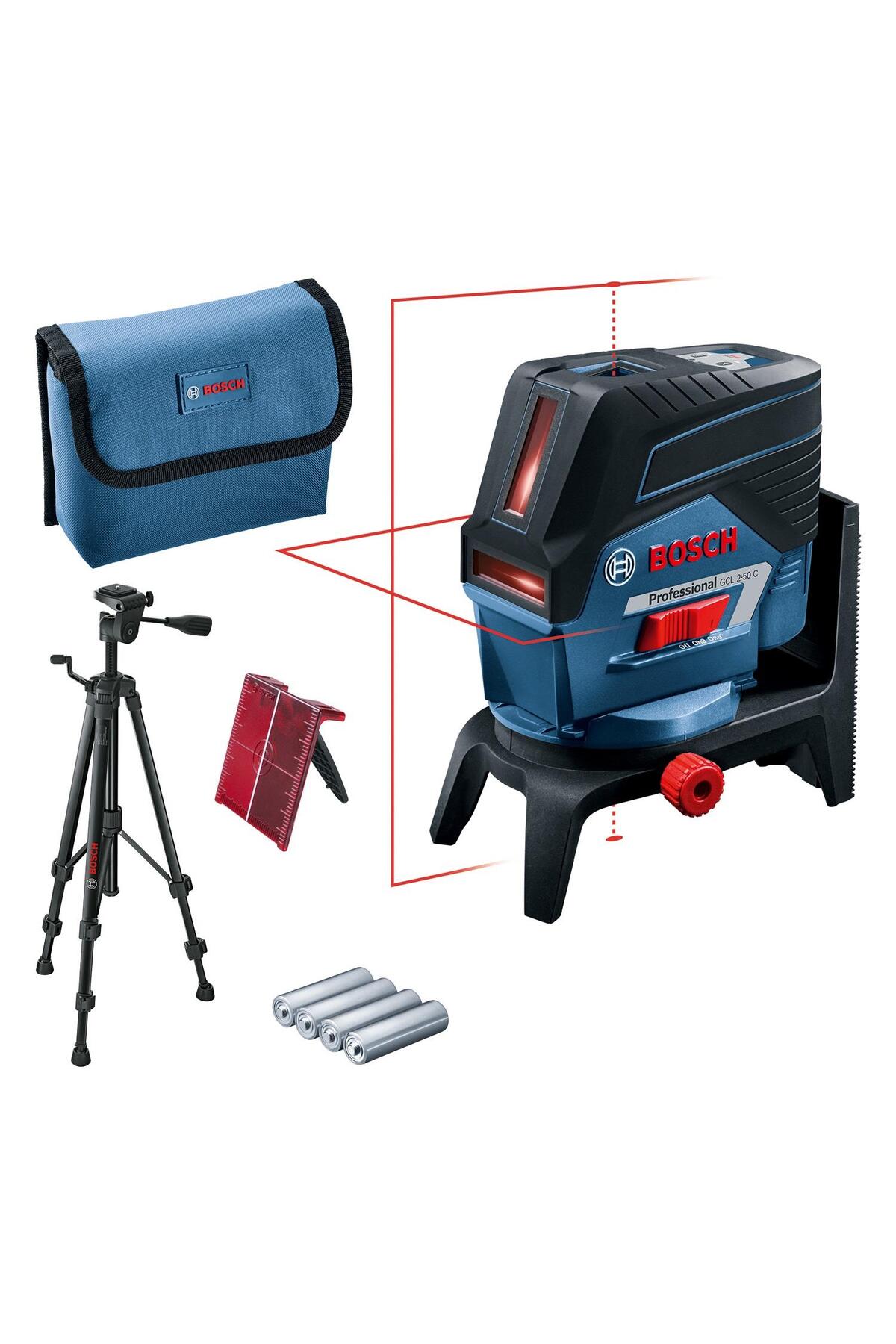

10 m (up) , 10 m (down) Automatic leveling area ± 4° Protection against dust and spray water IP 54 PRODUCT VIDEO Package Content AA1 alkaline battery adapter 1 608 M00 C1B BT 150 Professional tripod 0 601 096 B00 GCL 2-50 C/CG attachment 1 1 608 M00 C1T Laser target board Fabric bag Rotary platform with magnet RM2 0 601 092 700 4 x 1,5 V LR6 AA
