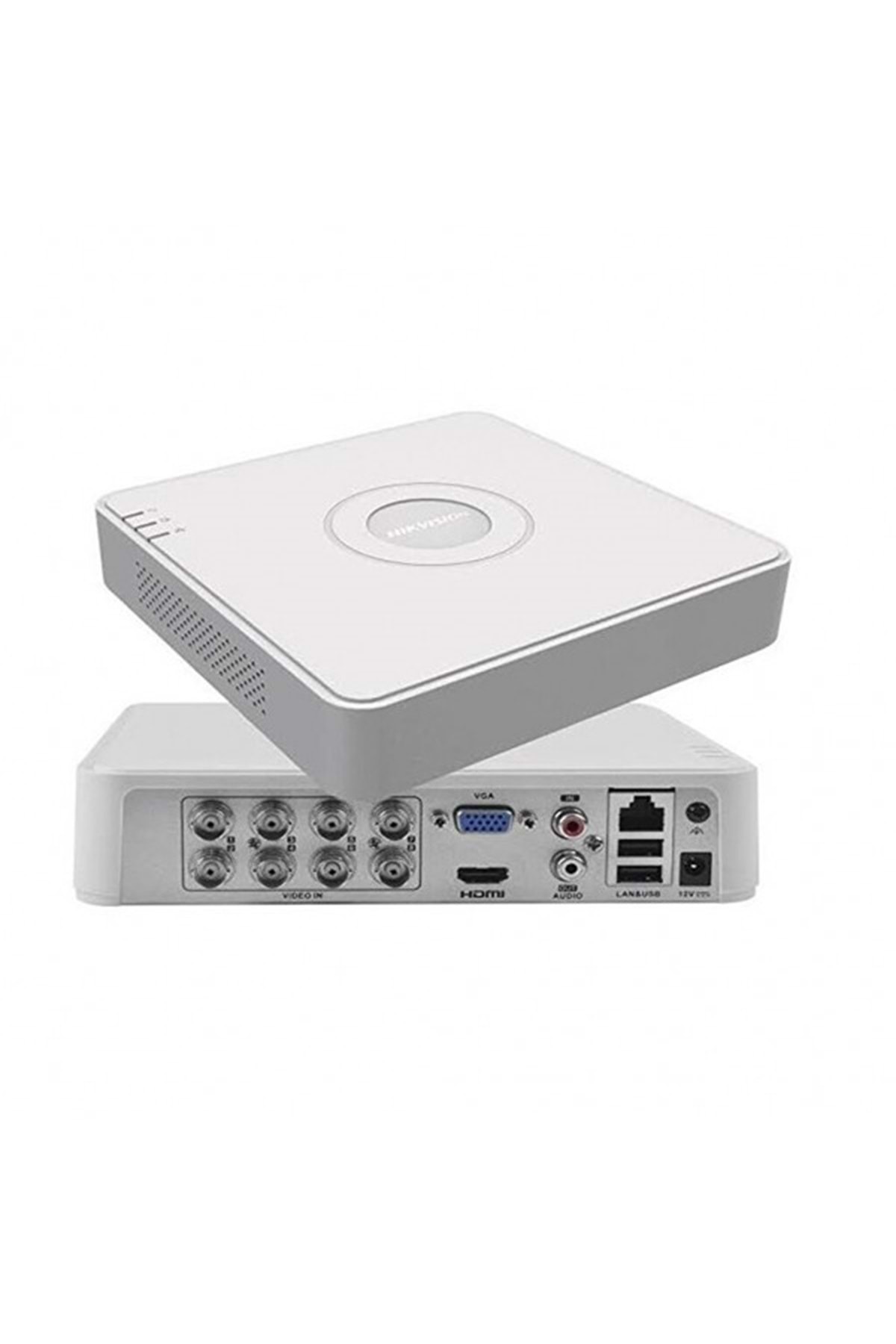

Hikvısıon Ds-7108hghı-k1 or m1 1080p H.265 Pro+ 8 Channel Dvr Recorder Motion Detection 2.0

Human / Vehicle Analysis Deep learning based motion detection 2.0 is enabled for all analog channels by default, can classify human and vehicle and greatly reduce false alarms caused by objects such as leaves and lights

Quick search by object or event type supported

Registiration

Video CompressionH.265 Pro + / H.265 Pro / H.265 / H.264 + / H.264

Encoding Resolution For 1080p stream access: 1080p Lite / 720p Lite/WD1/4CIF/ VGA / CIF For 720p stream access: 720p /WD1/4CIF/ VGA / CIF For SD stream access: WD1/4CIF/ VGA / CIF

Frame Rate Mainstream: For 1080p streaming access: 1080p Lite / 720p Lite /WD1/4CIF/VGA / CIF @ 15 fps For 720p streaming access: 720p /WD1/4CIF/VGA / CIF @ 15 fps For SD streaming access: WD1/4CIF/VGA / CIF @ 25 fps (P) / 30 fps (N) Substream: For 1080p and 720p streaming, access CIF / QVGA @ 15 fps For SD streaming access: CIF / QVGA @ 25 fps (P) / 30 fps (N)

Video Bitrate32 Kbps to 4 Mbps

Stream TypeVideo, Video and Audio

Audio CompressionG.711u

Audio Bitrate64 Kbps

Video & Audio

IP Video Input 2-ch (up to 10-ch) Support H.265 + /H.265/H.264 + / H.264 IP cameras up to 5 MP resolution

BNC interface supporting Analog Video Input 8-ch Coaxitron connection (1.0 Vp-p, 75 ?)

HDTVI Input1080p25, 1080p30, 720p25, 720p30

AHD Input1080p25, 1080p30, 720p25, 720p30

HDCVI Input1080p25, 1080p30, 720p25, 720p30

CVBS InputSupport

HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output ModeHDMI/VGA simultaneous output

Audio Input 1-ch RCA (2.0 Vp-p, 1 K?) 8-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 K?)

Two-Way AudioReuse the first audio input

Synchronous Playback8-ch

network

Total Bandwidth72 Mbps

Remote Connection64

Network ProtocolTCP / IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTP

Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA1 SATA interface

CapacityUp to 4TB of capacity per disk

USB InterfaceBackplane: 2 × USB 2.0

Alarm Input / OutputNo

General

Power Supply12 VDC, 1.5 A

Consumption? 17 W (without HDD)

Operating Temperature-10°C to 55°C (14°F to +31°F)

Operating Humidity10% to90%

Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inches)

? 1 kg (without HDD, 2.2 lb.
