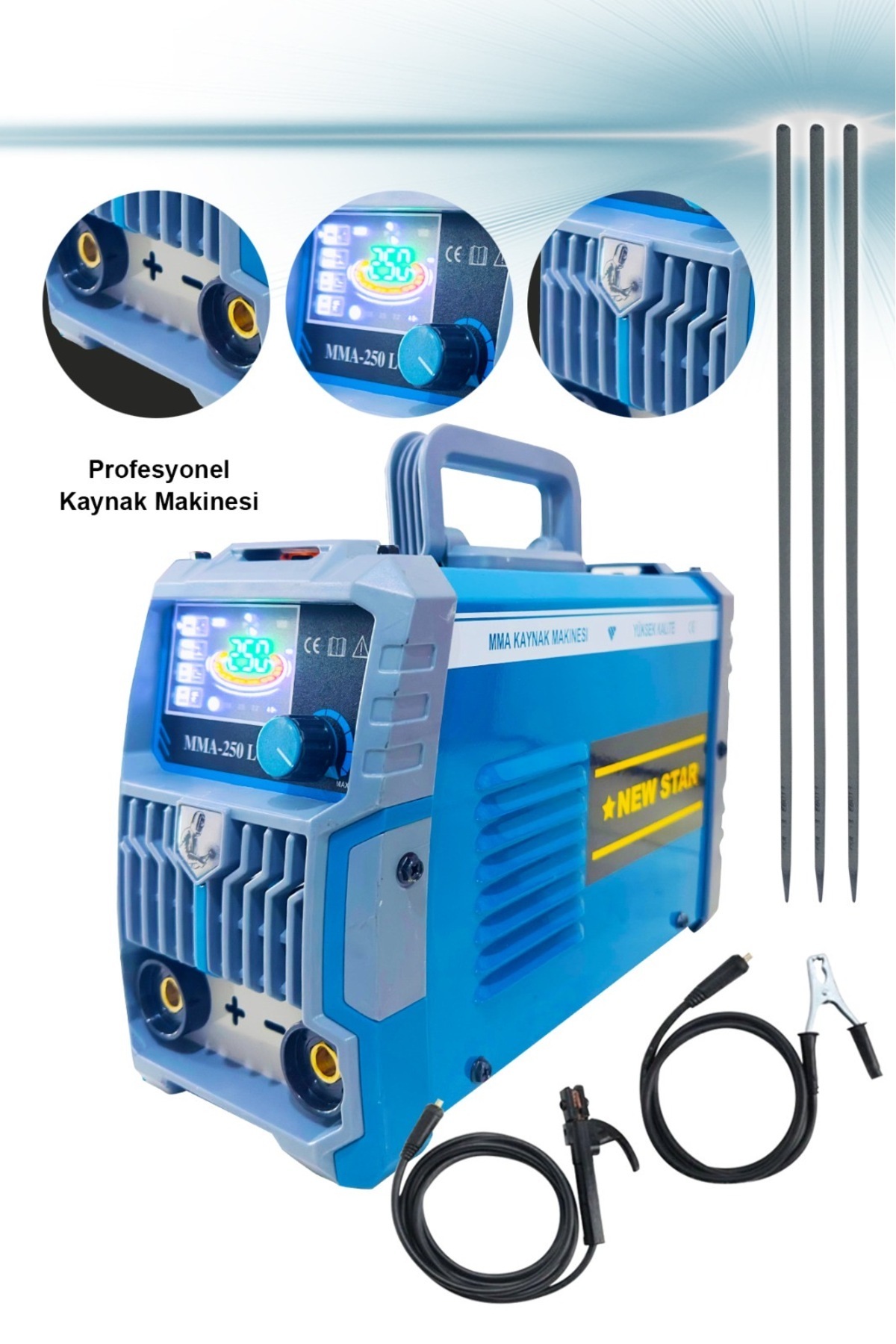

Inverter Digital Indicator Welding Machine 250 Amp 2.5 3 Melting Rods Seamlessly Inverter Digital Indicator Welding Machine 250 Amp 2.5 3 Melting Seamlessly Upgradable Spare Resistor Potential Usage Dependent Conductor Upgradable Amp Output ARC 500 Upgradable PRO welding machine is designed for welding works to continuously burn 2.50, 3.25 diameter rod electrodes with direct current (DC) Slot, rutile and cellulosic character cover with inverter technology.

As a result of the optimization of the inverter technology with its vertical welding characteristic, it provides stable arc and good re-ignition performance.

It is suitable for use with a generator provided that it has a power of at least 10 kVA.

It has a digital indicator for welding current.

Arc Force Adjustment: Temporarily increases current during welding.

This temporary increase in welding current facilitates the transition between the electrode and the molten welding bath.

Short arc length prevents adhesion by causing higher arc force.

The Arc Force value can be adjusted via the digital front panel.

The machine is cooled by x-torq fan and is thermally protected against overheating.

Complies with IP21S standards.

Thanks to the specially designed plastic ventilation grilles, maximum air circulation is ensured while preventing water from entering the machine.

Mains Voltage1 phase220 V (AC)Open Circuit VoltageU070 V (DC)Maximum Output Current 220 ATRecommended Mains FuseC Type40 A Electrode Types Rutile /Cellulosic Electrode Diameter 2.50 - 3.25 Working Regimen 220 A at 35% 110 A at 60% Cooling Series Fan Protection Class IP21S Dimensions (e/d/h) (cm) 17.5 x 40 x 31.5Weight (excluding cables) 3.5 kg 2 years warranty
