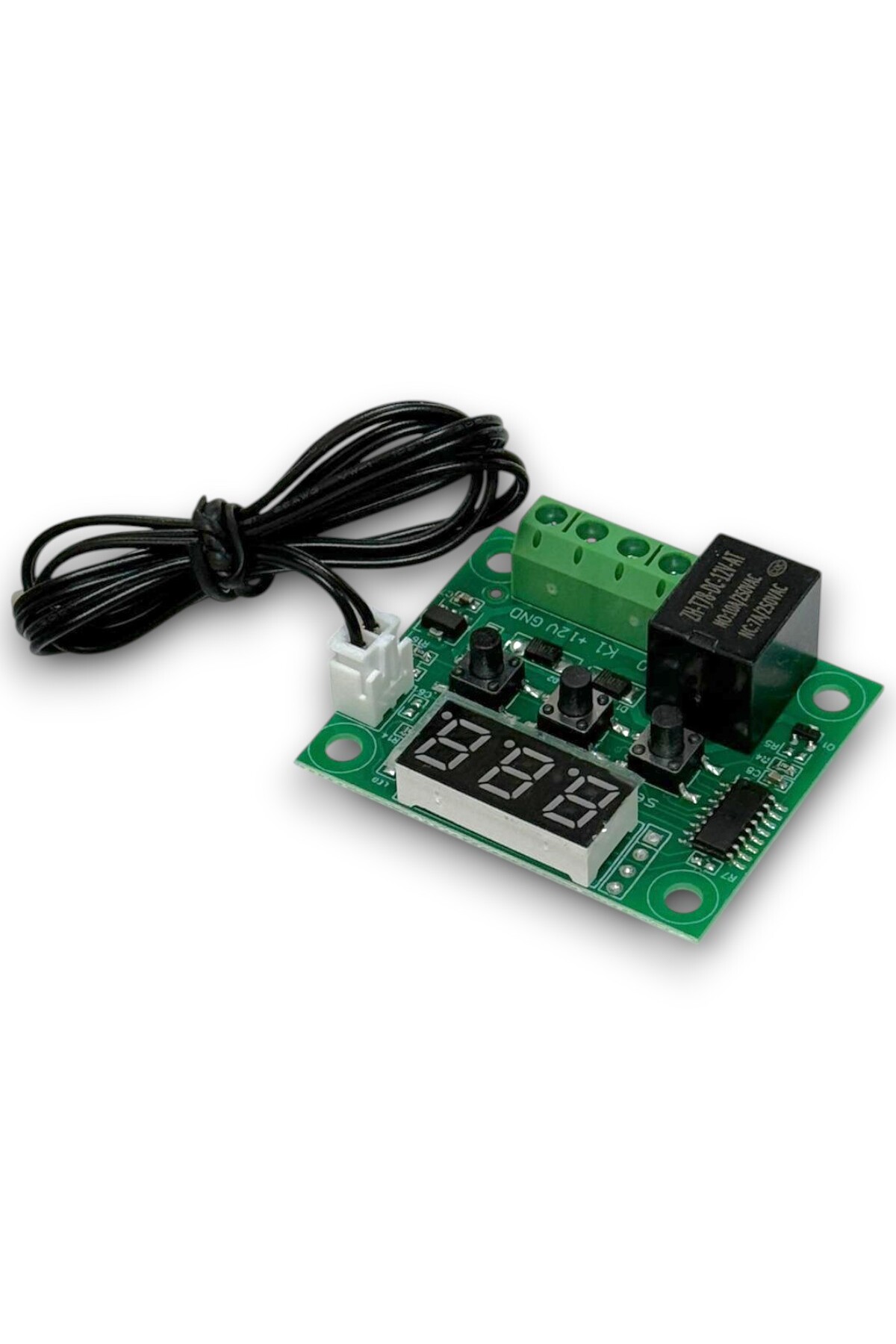

Instructions for Use Connect the power supply and load, you can supply it to the controller,
-
indicated as the measured temperature w,
-
press the SET button, the display temperature flashes,
-
Press the - key to set the desired temperature,
-
After setting, press the SET to confirm the return,
-
The controller performs automatically by closing the relay
-
Lights, led status descriptions:
-
Indicator: closed relay is closed, it always indicates that the relay is closed.
-
LED: Indicates that the LL sensor is on, HH indicates that it is out of range, the thermostat will be forced to turn off the relay, display - as high temperature protection.
-
Technical parameters: Temperature control range: -50 ~ 110 ° c Resolution: -9.9 ~ 99.9 time 0.1 ° c other temperature range 1 ° c Temperature measurement accuracy: 0.1 ° c Control accuracy: 0.1 ° c Hysteresis accuracy: 0.1 ° c Refresh rate: 0.5 S Input power: DC 12 V Measurement input: NTC (10 K 0.5%) waterproof sensor Output: 1 relay output, capacity = 20a 125VAC, 20a 14VDC Environmental requirements: -10 ~ 60 ° c humidity 20% -85% Size: 48.5*40mm Power consumption of the whole machine: silent current: 10MA pull current: 65MA
