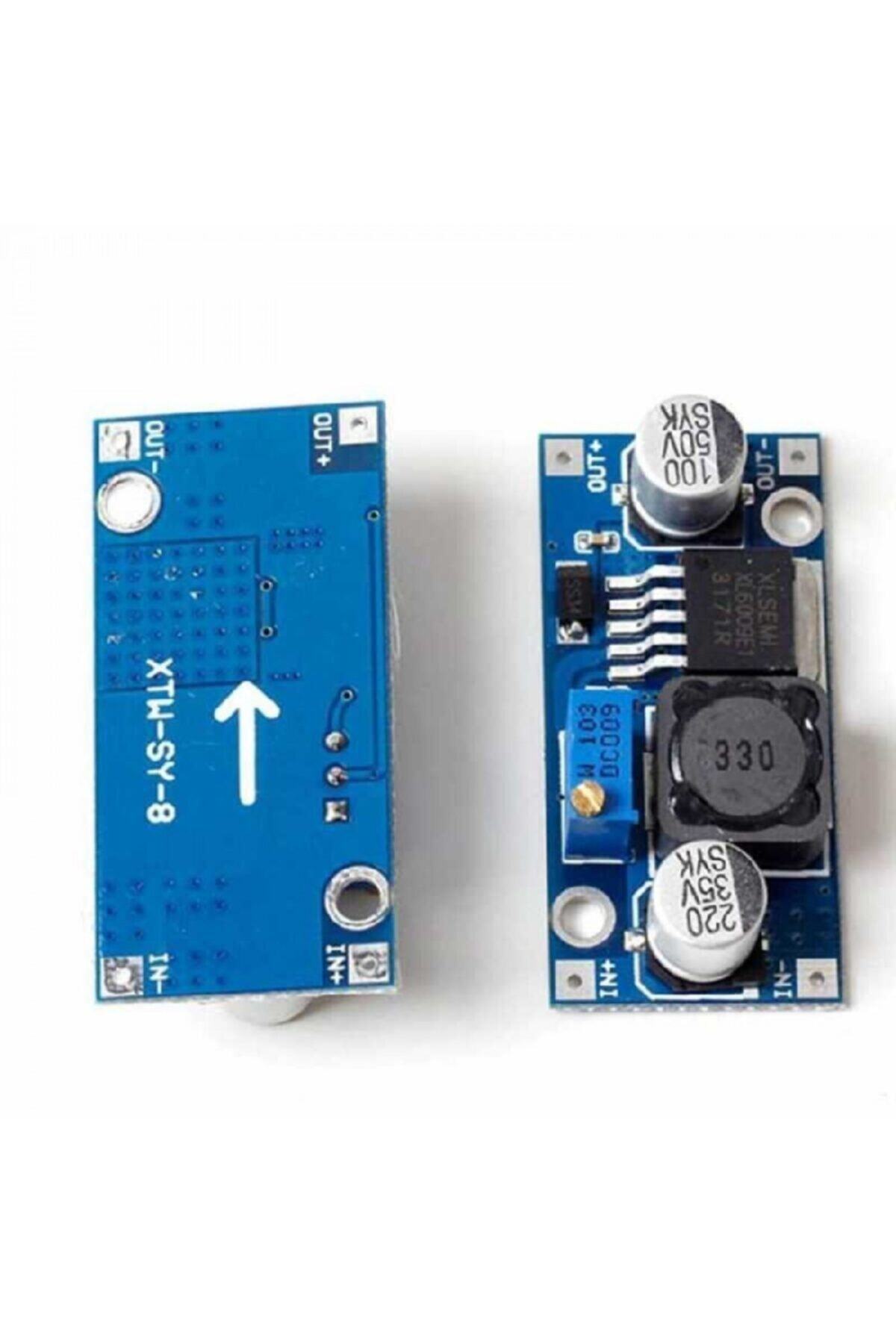

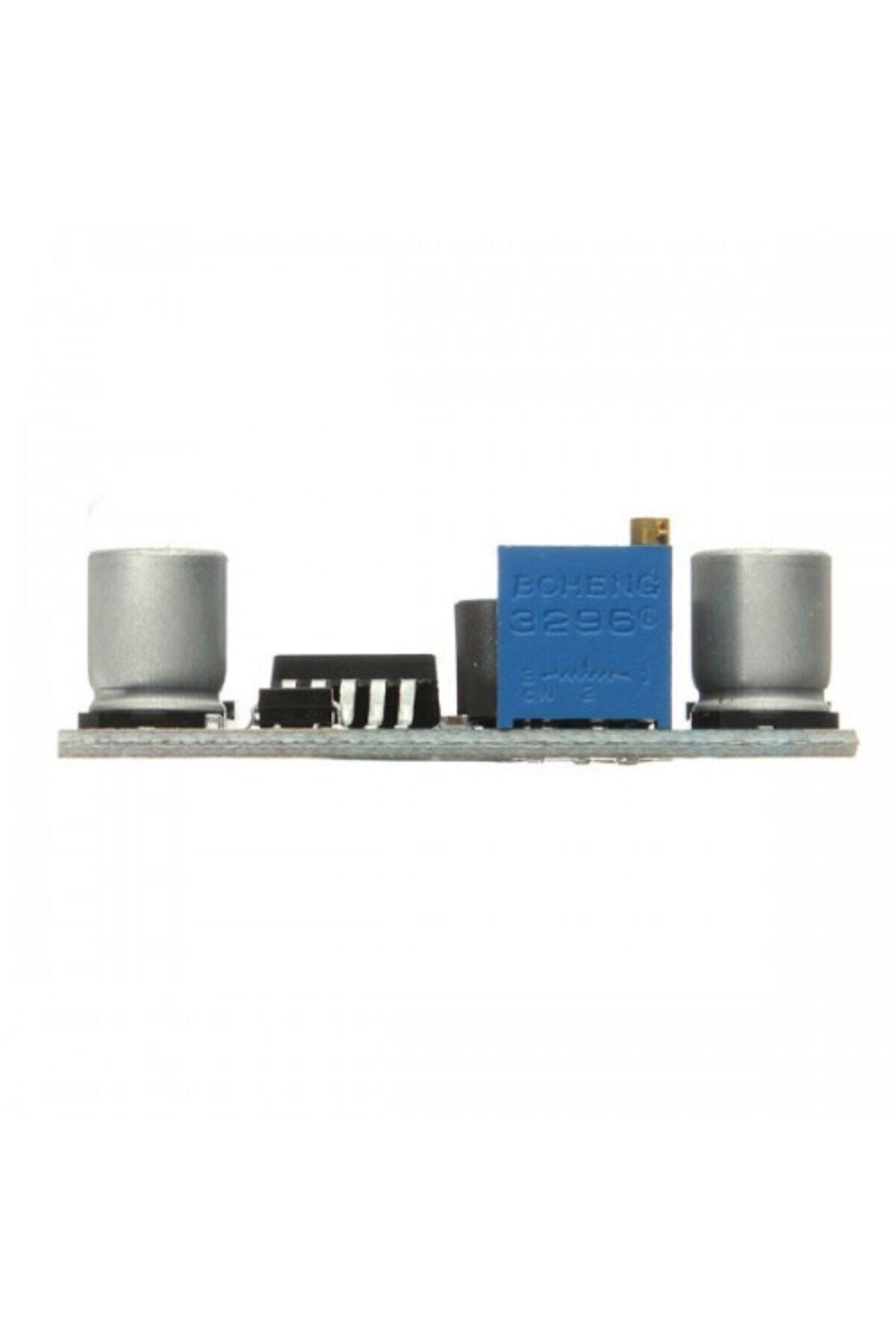

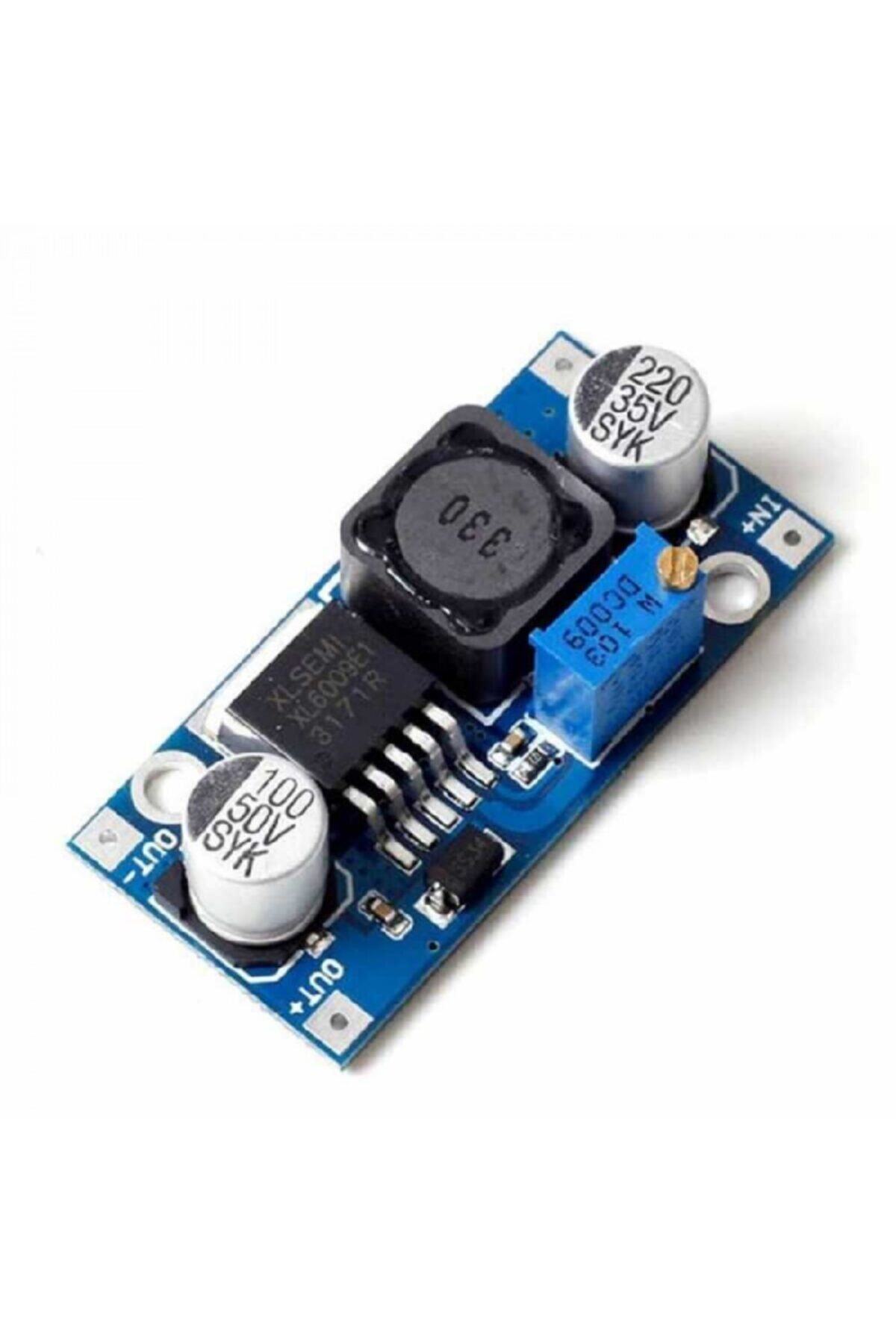

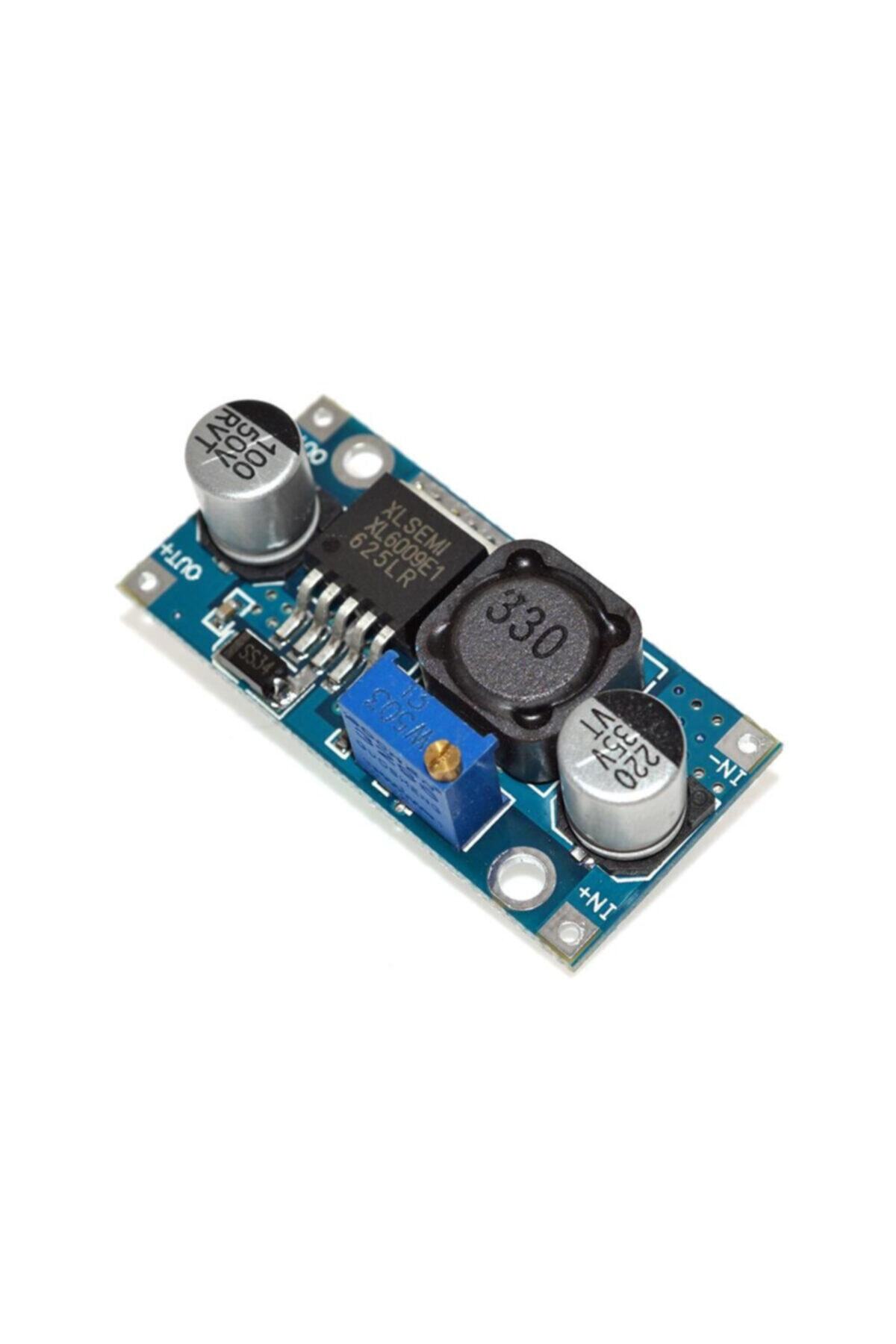

XL6009 - 4A Adjustable Step Up Boost Voltage Regulator Board There is an XL6009 integrated voltage regulator with switching on the voltage regulator board.

Up to 4A current can be flowed through the regulator.

Input voltage isbetween 3-32V.

According to the voltage value applied in this range, an output voltage between 5-35V can be obtained by taking advantage of the trimpot on the card.

This very easy-to-use and high-performance voltage regulator card allows you to adjust your input voltages in many hobby and robotic projects.

There is a pin slot for the connection of input and output voltages on the regulator board.

It can be used here by soldering cables and male or female headers.

In card applications, the output voltage must always be higher than the input voltage.

The IN+ positive supply input on the card is the IN-ground, the OUT+ positive output voltage, and the OUT- is the ground output.

Specifications Input Voltage:3-32V

Output Voltage:5-35V

Output current:

Card Dimensions: 43x21mm
