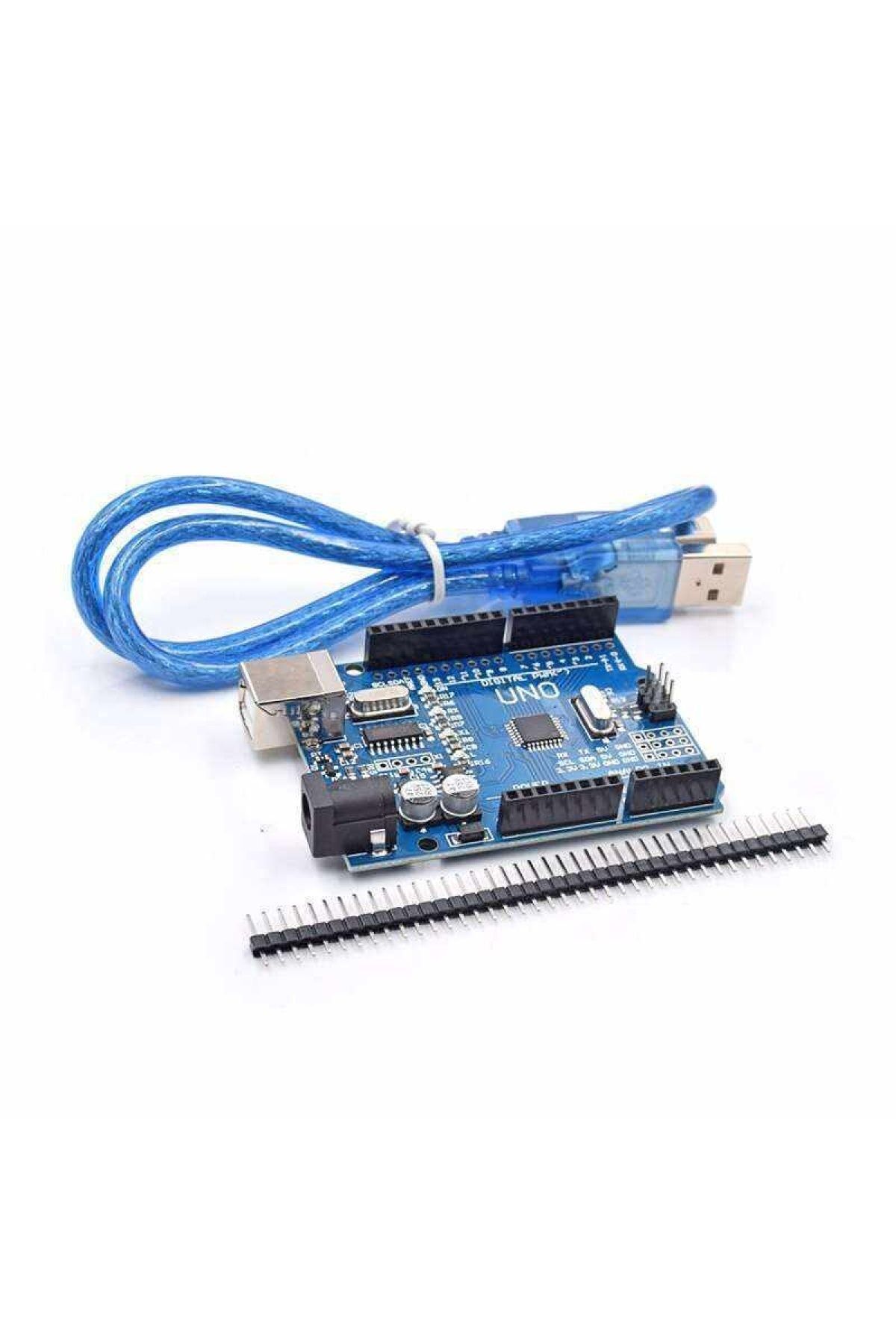

The main difference in this clone of Arduino Uno R3 CH340 Chip, which is one of the standard boards of Arduino, is that the programming integrated (USB-Serial converter) used by Arduino Uno R3 CH340 is CH340.
-
Although it has a few small differences from Arduino, there is no difference in terms of its use, software and the compatibility of the expansion boards.
-
Arduino Uno
-
It is a microcontroller card based on Atmega328.
-
It has 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, 16Mhz crystal, usb socket, power socket, ICSP connector and reset button.
-
There is everything necessary for the microcontroller to work on the card.
-
It can be easily connected to the computer via USB cable, operated by adapter or battery.
-
Technical Specifications Microcontroller: ATmega328P
-
Operation Voltage: 5V
-
Input Voltage (recommended): 7-12V
-
Input Voltage (limit): 6-20V
-
Digital I/O Pins: 14 (6 of which are PWM outputs)
-
Analog Input Pins
-
Current per I/O: 40 mA
-
Current for 3.3V Output: 50 mA
-
Flash Memory: 32 KB (ATmega328) 0.5 KB bootloader
-
SRAM: 2 KB (ATmega328)
-
EEPROM: 1 KB (ATmega328)
-
Clock Speed 16 MHz
-
Length: 68.6 mm
-
Width: 53.4 mm
-
Weight: 25 g
-
