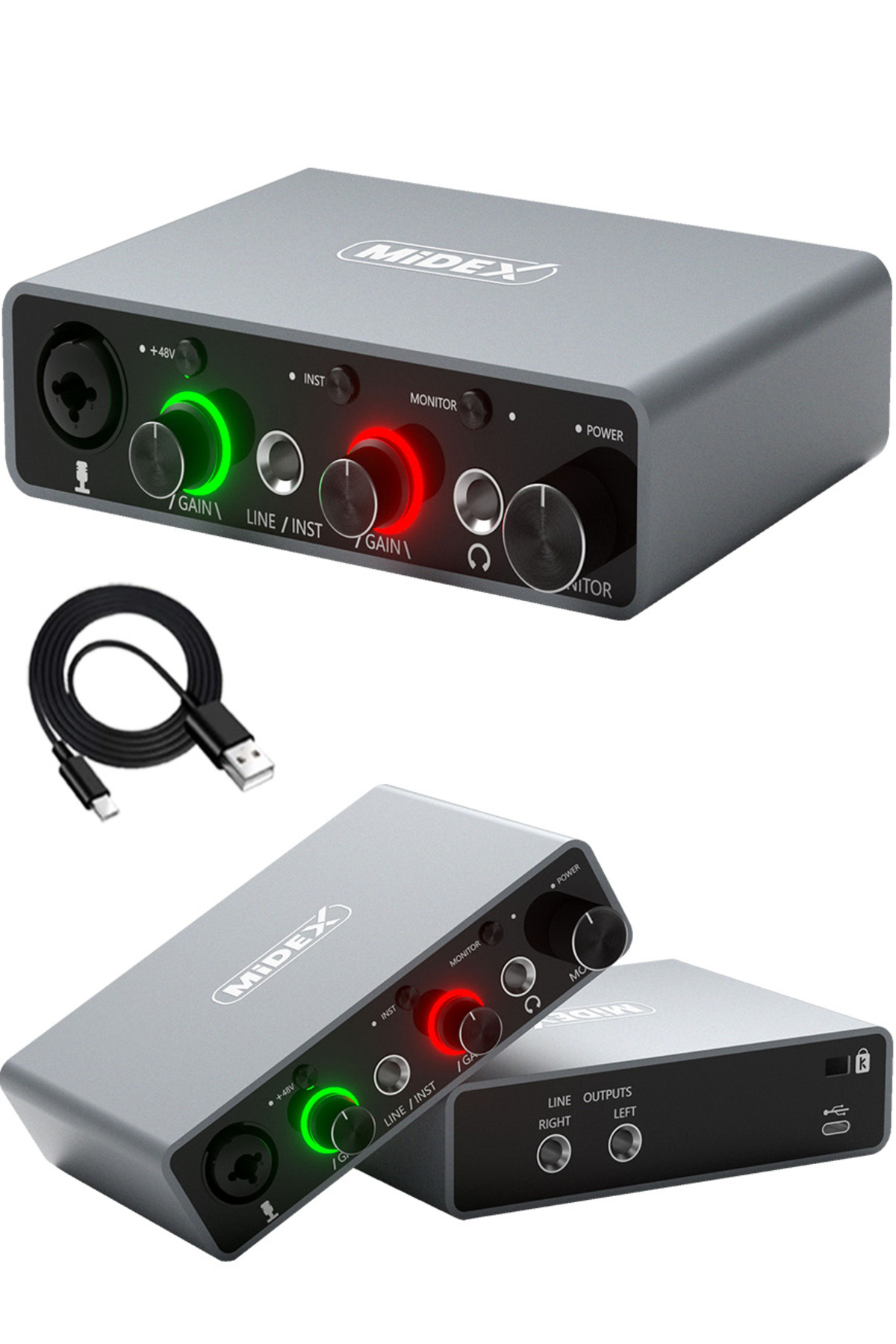

Midex GLX-700GRUpper Segment Usb Studio Sound Card 2 Input 2 Output 24bit/192kHz

MidexGLX-700GR Specifications

24bit/192kHz

2 Input 2 Output Studio Sound Card

+48V Phantom On/Off

Dynamic range:

Maximum Input Level: +8 dBu

Frequency Response: 20 Hz - 20 kHz ±1 dB

Noise Cancellation: -110 dBu

Gain Response: 50 dB

Microphone Input Impedance: 3 kohms

Instrument Input Impedance: 1 Mohms

Line Input: 20 kohms

Headphone Output Impedance: 30~300ohm

Monitor Output Impedance: 221 ohms

Entry and exit

1 pcs. Microphone Input (6.3 mm Jack and 3 Pin XLR)

1 pc. Instrument Inlet (6.3 mm Mono JACK)

1 Headphone Jack (6.3 mm Stereo JACK)

1 pcs. Reference Monitor Output (2x6.3 mm Mono JACK)

1 pcs. TYPE C Computer Transfer Output (Computer Input USB)

Dimensions and Weight:

Width: 140 mm

Length: 109 mm

Height: 38 mm

Weight: 337 grams
