ASSEMBLY AND USER'S MANUAL
-

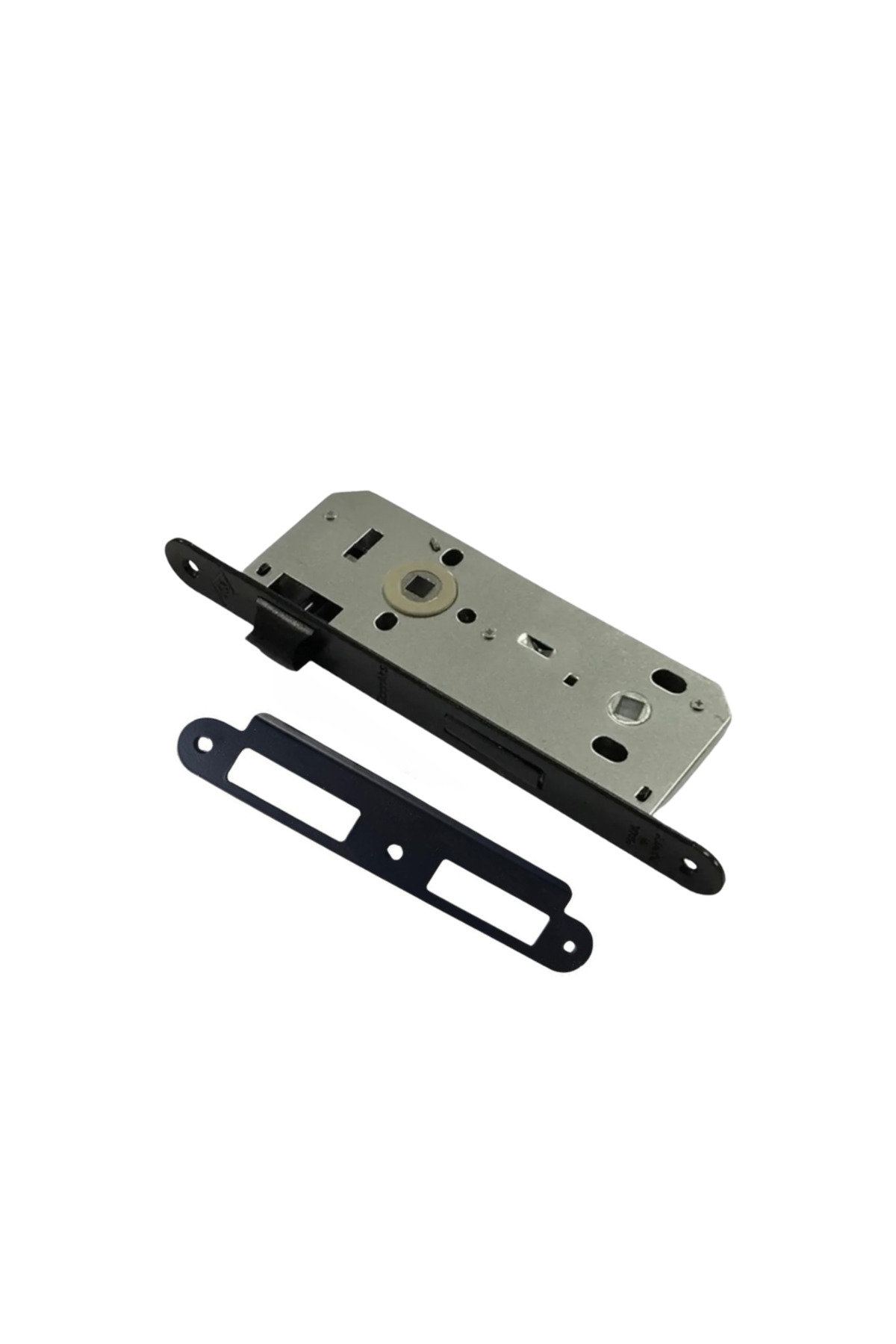

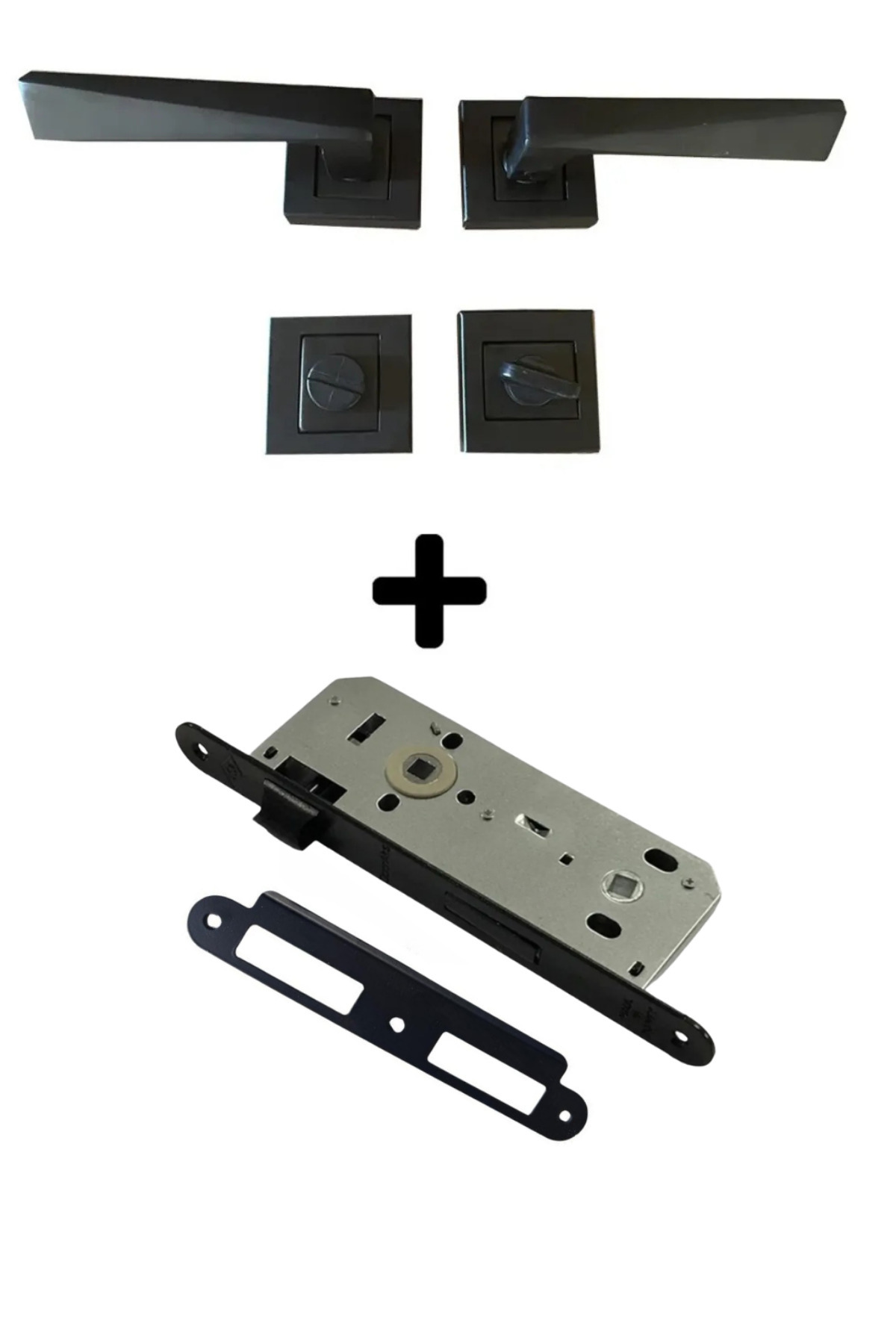

Before installing the lock on the door, remove the tongue with the help of a thin screwdriver into the tongue rotation hole on the back of the lock to adjust it according to the RIGHT or left opening door
-
Move the tongue to the RIGHT or LEFT position by hand
-
Mark the place where you will install the lock
-
Lock case length is 180 mm
-
Open the slot with an 18 mm mill
-
Drill the holes of the handle and key with a 20 mm drill on the right axis by taking measurements from the forehead surface of your door
-
Mount your lock with a 3.5x25 mm chipboard screw
-
Install the locking striker with 3 x 3.5x20 mm chipboard screws
-
LOCK ARRANGEMENT USED MECHANICALLY IN RESIDENTIAL DOORS INSIDE THE BUILDING: MANUAL LOCKING WITH INTERMEDIATE LOCKING POSITION PRODUCTION DATE: 02/2021 TESTS AND VALUES REQUIRED FOR CLASSIFICATION
-
Resistance to lateral force on tongue slide is 2kN
-
To operate the lock with the key without applying lateral force
-
The maximum torque applied to the hub to operate the lock is 10 kN, the maximum torque required is 1.2 kN
-
The tongue components and travel limit stops of the lock are resistant to 20 Nm of torque
-
Movement resistance of the tongue slide minimum 12
-
500 cycles
-
The maximum door mass that the lock can operate is 100 kg
-
The maximum door closing force that the lock can operate is 15 N
-
Not designed for fire resistant doors
-
Lock slide protrusion min
-
10 mm:
