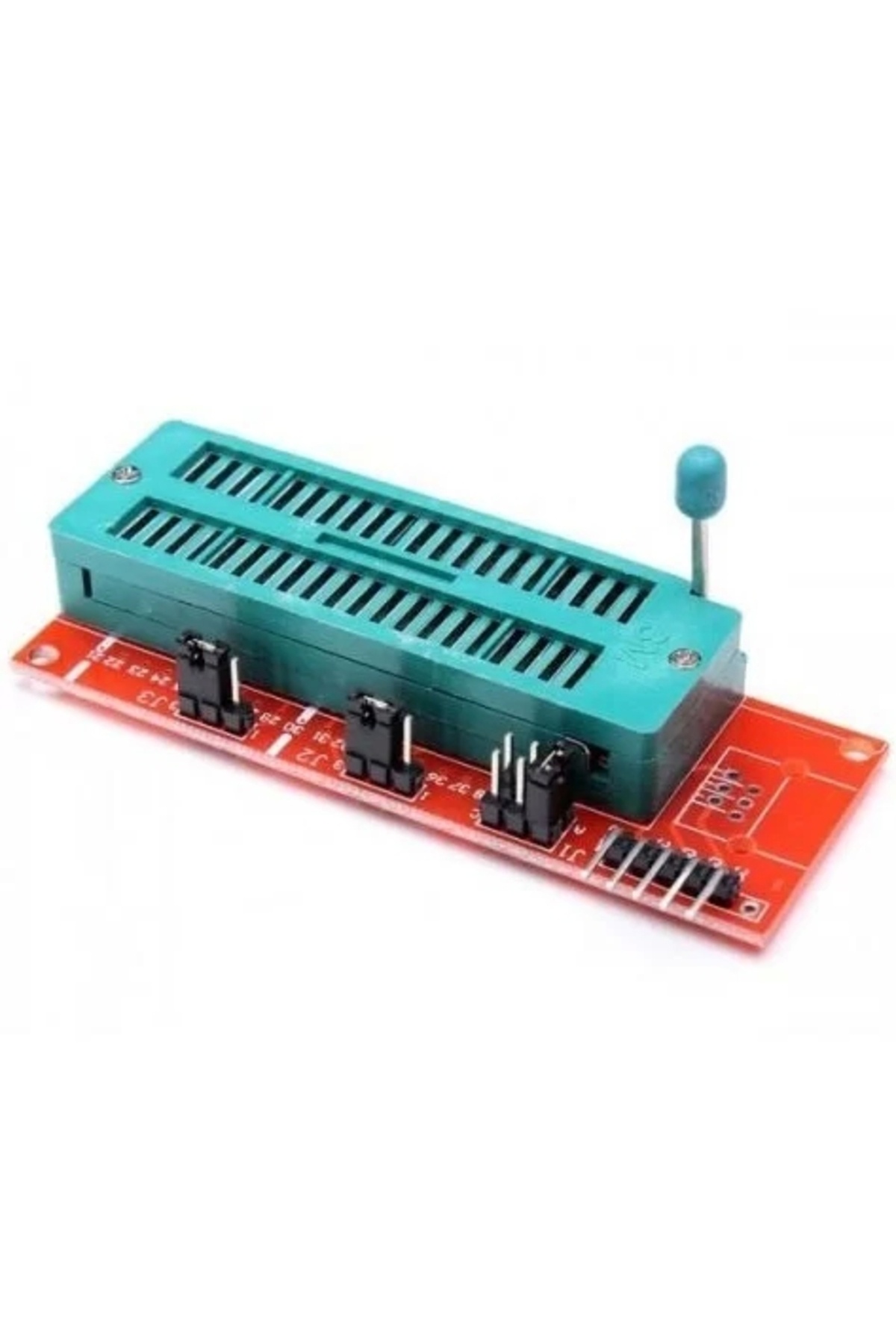

Pickit 2 Pickit 3 Zif Socket Adapter Pic programmers usually only have an ICSP output socket.
-
For the programming process, real circuits must be made on the breadboard or on various PCBs.
-
It is not always easy to install this circuit and many errors may occur when making cable connections.
-
This circuit has been developed by using a zif socket in order to perform this process easily.
-
It has a structure that can be set with jumpers according to the number of different pins.
-
It is very easy to use.
-
A 5-pin ICSP connection is established with the cable between the programmer and the pitch circuit.
-
There are 3 jumper settings on the zif socket circuit.
-
Under the socket, it is written in which position 3 jumpers should be located according to the number of pic pins such as 40 pins, 28 pins, 18 pins.
-
For example, number 1 for 40 pins is attached to the latch side.
-
J1=A , J2=2-3, J3= 2-3.
-
Figures show how to install the numbers 1 of the pics.
-
Numbers 1 of all pics except PIC10FX correspond to the latch side.
-
Pics Supported : PIC16/18XX series 40 pin pics
-
PIC16/18XX series 28 pin pins
-
PIC16/18XX series 18 pin pins
-
8 - 14 - 20 pin pins
-
10FXX series pics
-
PIC16F57
-
Package Includes : 1 Piece Pickit 2 Pickit 3 Zif Socket Adapter
-
Warranty: There is no warranty for the product due to the semi-finished product.
